53111230, Lapp SKINTOP Series Black Polyamide Cable Gland, M25 Thread, 8mm Min, 17mm Max, IP66, IP68, IP69K, Кабельный ввод

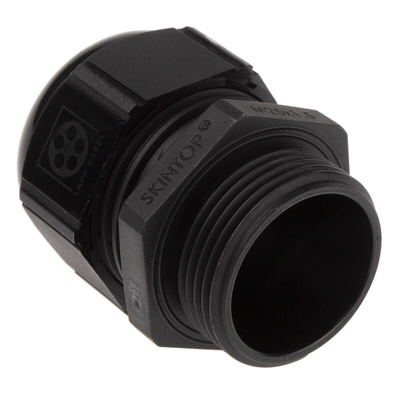

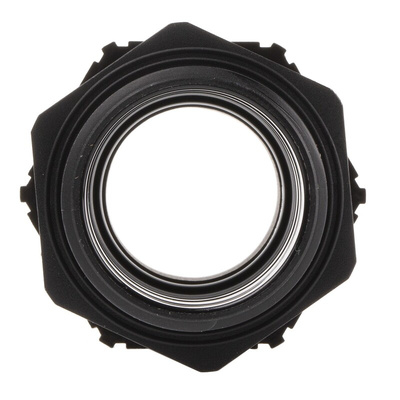

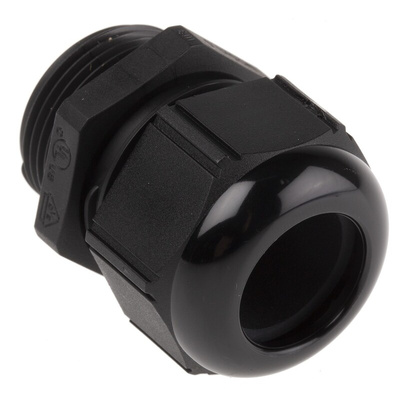

LAPP Cable Gland, M25 Thread, 8 to 17mm Cable Diameter - SKINTOP Series - 53111230

Protect your electrical wiring from dust and other environmental contaminants with this robust cable gland from LAPP. As it's made of polyamide material that's durable and resistant to wear, you can be sure of long-term performance even when it's used in harsh environments. The unit is suited to a wide temperature range and can function effectively between -20°C and +100°C. Screw-in fitting means the cable gland is easy to install without the need for any special tools. You'll find it commonly used in production and manufacturing plants.

Features & Benefits

• Supports cable diameters from 8 to 17mm, so it's a versatile cable management tool
• IP69K (ingress protection) rating to withstand dust and high-pressure washdowns at high temperatures
• Provides strain relief to prevent cables from twisting at damaging angles, which prolongs their lifespan

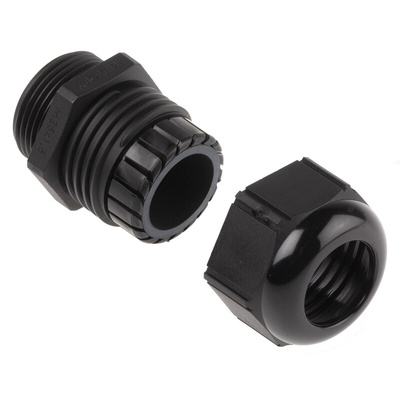

• Comes with a locknut that makes a secure, vibration-proof connection

Applications

• Marine industries
• Equipment manufacturing plants
• Control and automation technologies

What are this gland's thread dimensions?

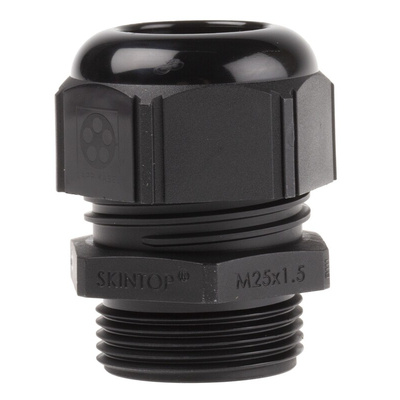

This cable gland has a thread length of 10mm and an M25 thread size, so it's compatible with other standard components.

LAPP_PRO976_Datasheet

Cable Gland Selection Chart
