XS8D1A1PAL2, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 60 mm Detection, PNP Output, 12 → 24 V dc, IP68, Индуктивный датчик приближения

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).
OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

• Flush and Non-Flush (shielded and non-shielded).


• Flat form.


• Short and long body.


• PNP and NPN versions (compatible with PLCs and controllers).


• 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

• Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.


• Material working, machine tools. Packaging. Food and beverage. Robotics.

Note

Manufacturers part nos. starting with XS8 indicate teach mode.

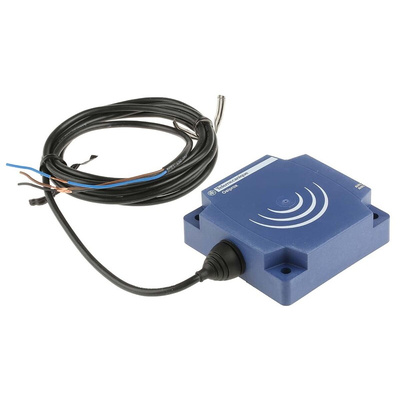

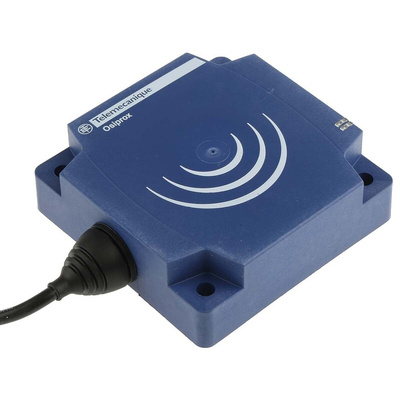

XS8D1A1PAL2 General Purpose Inductive Proximity Sensor (XS).

• XS8 Inductive Proximity Sensor.


• General purpose.


• Flat form (block) 80 x 80 x 26.


• Size 26 mm.


• Non-Flush mountable.


• Plastic body (PBT) Fixed, PBT front.


• Discrete signal, 3-wire.


• 40 mm flush mountable, 60 mm non-flush mountable sensing distance (nominal).


• Output 1 NO (DC), PNP.

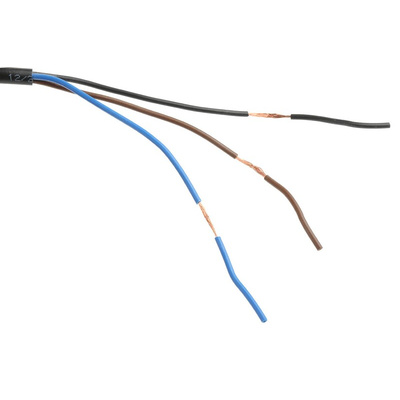

• 2 m Cable connection.


• [Us] rated supply voltage 12 to 24 V dc (reverse polarity protection).


• Front detection face.


• 1 LED.


• Depth 26 mm, Height 80 mm, Width 80 mm.


• Weight 0.39 Kg.


• IP68 double insulation conforming to IEC 60529.


• Vibration resistance to IEC 60068-2-6.


• Shock resistance to EN 60068-2-27.


• CE marked.

Certificates.

• UL, CSA, Ecolab.

UL E164869
