XS618B1PAM12, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 12 → 48 V, Индуктивный датчик приближения

Telemecanique Inductive Proximity Sensors OsiSense XS.

Telemecanique Inductive Proximity Sensors OsiSense XS series (extended sensing range) allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).
OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

• Flush and Non-Flush (shielded and non-shielded).


• Flat form.


• Short and long body.


• PNP and NPN versions (compatible with PLCs and controllers).


• 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

• Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.


• Material working, machine tools. Packaging. Food and beverage. Robotics.

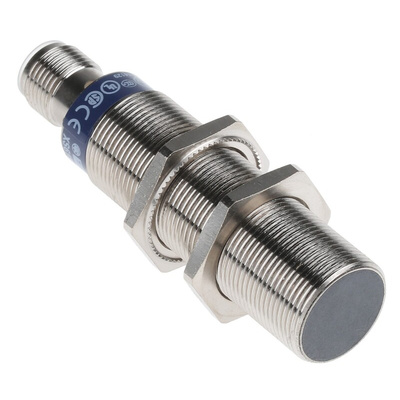

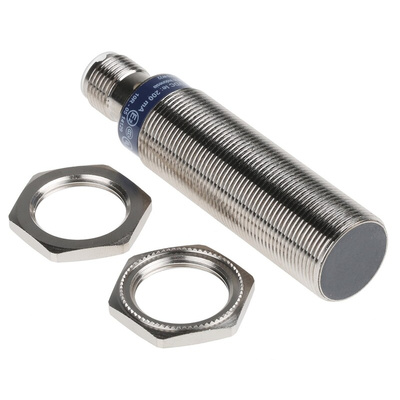

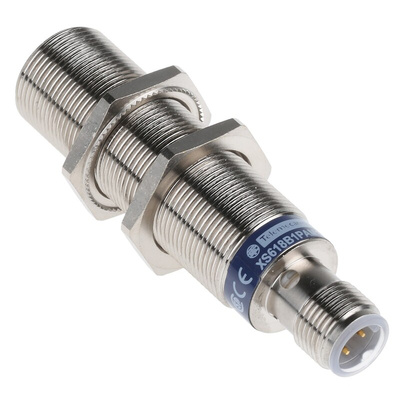

Telemecanique Sensors Proximity Sensor, Flush Mounting, Nickel-Plated Brass Construction - XS618B1PAM12

Need to keep an eye on moving parts? Choose this proximity sensor from Telemecanique Sensors. It's a non-contact device that uses inductive sensor technology to spot metal items without physically touching them. As it senses objects in an 8mm range, you can be sure that only the intended target is detected. The component has a body made of nickel-plated brass that stands its ground against corrosion and impact to deliver a long service life. A maximum recovery duration of 7 milliseconds ensures that your machine processes recover smoothly after an interruption, minimising downtime and optimising productivity.

Features & Benefits

• Flush mounting design minimises the risk of accidental contact
• M18 thread size for vibration-resistant installation in compatible machinery
• Weighs just 40g, so it's easy to handle during installation and maintenance
• IP69K rating indicates it’s protected against dust and high-temperature, high-pressure water jets
• Can withstand up to 50gn of impact for reliable shock resistance

Applications

• Conveyor systems
• Material handling equipment
• Packaging machinery

How do I check the operating status of this sensor?

This sensor has a yellow LED indicator that lets you monitor its status, diagnose faults and troubleshoot issues at a glance.
