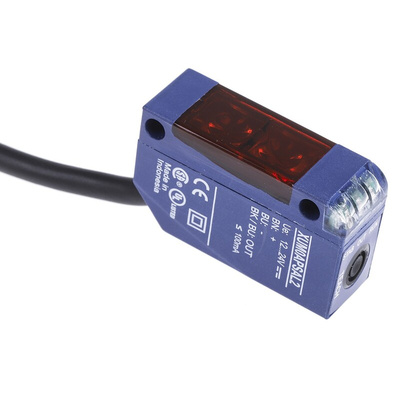

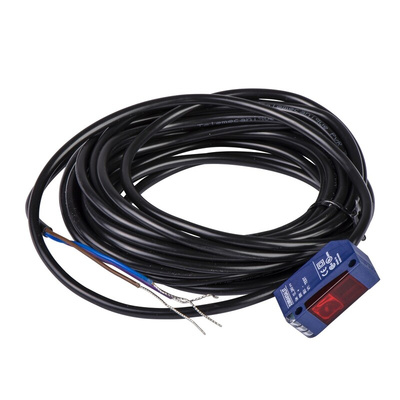

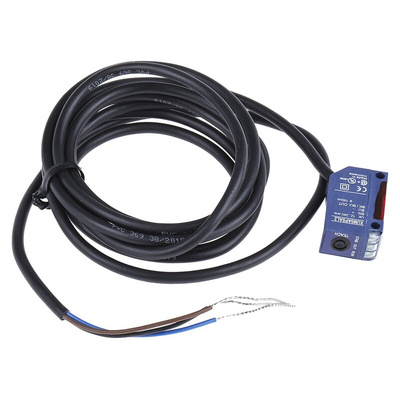

XUM0APSAL2, Telemecanique Sensors Multimode Photoelectric Sensor, Block Sensor, 100 mm → 10 m Detection Range, Фотоэлектрический датчик

Miniature Photoelectric Detectors

Four modes of detection in one unit
Easy set-up at the touch of a button
Self teach precise set-up 'multi-mode detection'
Sensing distance dependent on mode of operation
Through Beam Functionality using additional light source (thru-beam accessory)
Programmable NO/NC switching

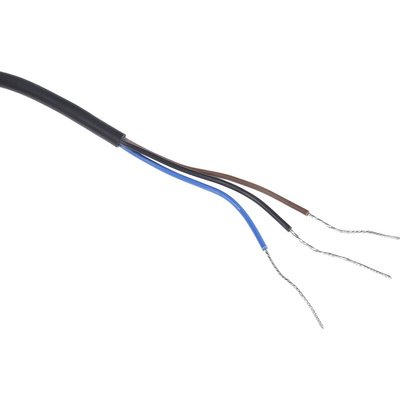

Connection: pre-cabled or plug-in connector
Operating temperature range -25 to +55 °C

Telemecanique Sensors Photoelectric Sensor, PBT Housing, 0.1 to 10m Detection Range - OsiSense XU Series - XUM0APSAL2

Need to keep an eagle eye on objects in your industrial environment? Let this photoelectric sensor from Telemecanique Sensors do the job. It uses infrared light to detect objects and sends a signal to switch a device on or off if action is needed. As it offers four different detection modes in a single unit, it's a handy tool for adjusting the scope of your operations. Thanks to its broad sensing range between 0.1 and 10m, it's a versatile piece of kit. Built-in LED indicators shed light on the sensor's operating status, so you can monitor it in a flash.

• Quick response time of under 2ms for reliably rapid detection
• Tough PBT housing resists impact and wear
• Wide operating temperature range between -25°C and +55°C for use in demanding environments
• Protection against reverse polarity, overload and short circuits boosts electrical safety

Applications

• Security gates
• Assembly lines
• Medical equipment
• Construction sites

Can I use this sensor in damp environments?

Yes, it has IP65 and IP67 ratings, which indicate that it's protected against dust, low-pressure water jets and submersion in 1m of water for up to 30 minutes.
