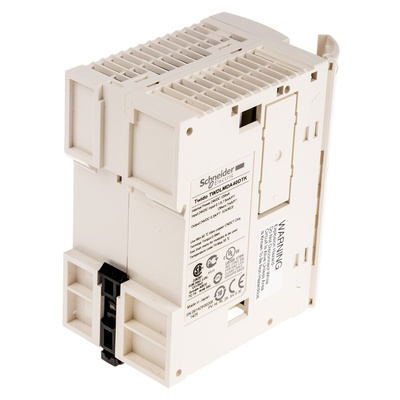

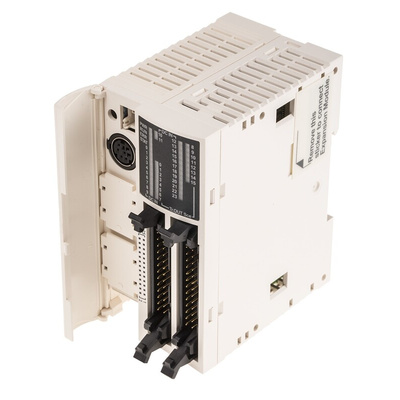

TWDLMDA40DTK, Schneider Electric Twido Series Logic Module, 24 V dc Supply, Analogue, Transistor Output, Логический модуль

Schneider Electric Logic Module, 300mA Output Current, 24V DC Supply Voltage - Twido Series - TWDLMDA40DTK

Use this logic module from Schneider Electric to support your automated and control processes. The industrial computer is a substitute for electromechanical relay systems in automation and performs basic mathematical, logical, regulation, input and output operations. It's a compact unit with dimensions of 90 (L) x 47.5 (W) x 70mm (D), so it takes up minimal space on busy panels. For quick and easy wiring, choose between either screw terminal blocks or spring-type connectors.

Features & Benefits

• Lightweight device of 180g adds minimal strain to control panels
• 16 outputs for the regulation of multiple processes with one unit
• LED status indicators for the easy detection of faults to limit process downtime
• IP20 rating indicates the device is touch-proof to prevent electric shocks and improve workplace safety

Applications

• Robotics systems
• Traffic controls
• Assembly lines
• Automatic access devices

How many I/O points does this programmable logic controller have?

This Twido logic module has 40 I/O points, allowing the connection of multiple switches and sensors.

At what temperatures can I use this logic module?

You can use this logic module in temperatures between 0°C and +55°C, so it's suited to industrial use.

Schneider Electric Twido Base Units - Additional Info:

Twido programmable controller from Telemecanique providing flexible automation solutions for the control systems. Designed to be user-friendly and flexible, with powerful control functions.

Small footprint reduces panel size for applications where space is limited
Flexible cabling choices (removable screw terminal blocks and spring-type connectors for expandable units), allowing quick and easy wiring
Suitable for applications requiring 10 - 264 I/O points
Compact controllers available with 10, 16, 24 or 40 I/O points
Each controller has an RS-485 programming port and stock no. 528-8643 also has an RJ45 ethernet port
Modular controllers available with 20 or 40 I/O points
All products in the Twido range meet the standards of the following regulatory agencies: IEC61131-2, UL1604/CSA C22.2 No.213 (class 1, division 2, groups A, B, C, D), CE and TÜV

Maximum I/O configuration

In order to connect all digital Input/Output modules and analogue Input/Output modules to base controllers, units should be built on DIN rails starting from the right-hand side of the bases, according to the following rules:

10 and 16 I/O compact bases cannot be expanded
24 I/O compact bases, can accommodate up to a maximum of 4 modules
40 I/O compact bases, can accommodate up to a maximum of 7 modules
20 I/O modular bases, can accommodate up to a maximum of 4 modules
40 I/O modular bases, can accommodate up to a maximum of 7 modules
