1SAM250000R1009 MS116-6.3, ABB 6.3 A Motor Protection Circuit Breaker, Автоматический выключатель

Starters

Covers motors up to 16A (7.5kW)
Local isolator
Protects against overloads, short circuits, phase failure and faults in cabling or wiring
These Motor Starters can be used in conjunction with ABB Contactors, stock no. 445-0897 typically
Accessories available from auxiliary/signal contacts to under voltage releases. Using an adaptor, motor starter combinations can be easily formed utilising contactors from ABB's mini and A series range; see typically 445-0897 and 445-0825

Standards

IEC 60 947-1/IEC 60 947-2/EN60 P47-1/EN60 (47-2)

Approvals

UL, CSA

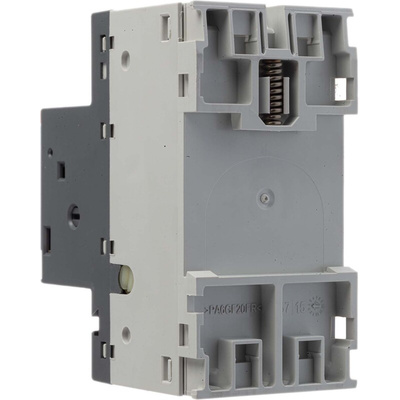

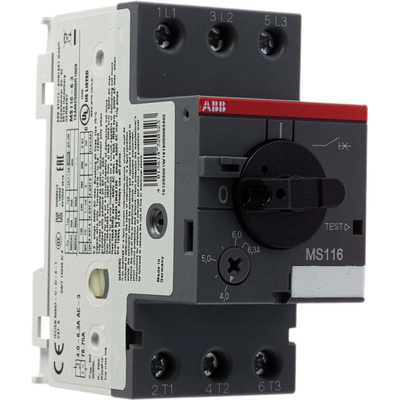

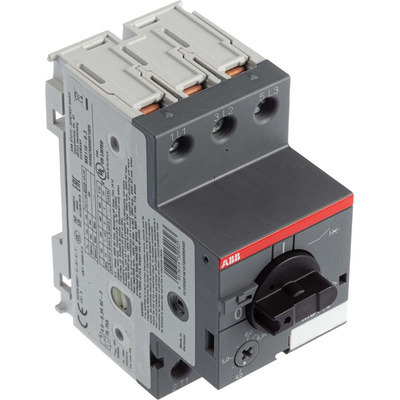

ABB Motor Protection Circuit Breaker, 6.3A Current Rated, Screw Terminals - MS116 Series - MS116-6.3

Need a device to safeguard your motor and equipment from faults? Choose this motor protection circuit breaker from ABB. There's no need for a fuse when using this component as its 10A trip class defends your circuitry from electrical overload. It has an ergonomic rotary handle on the front of the unit that makes it easy to turn your equipment on or off. For versatility, this unit handles both single-phase and three-phase applications. You can install it simply onto a DIN rail and use the screw terminals to make secure connections without specialist equipment.

• IP20-rated housing means it's tamper-proof and resists dust and small objects over 12mm
• Compact dimensions of 90 (H) x 45 (W) x 85.6mm (D) make it space-efficient
• 3-pole design allows multiple connections for increased productivity
• Lifespan of up to 100,000 cycles for long-lasting use
• Ambient air temperature compensation maintains optimal performance in changeable conditions

Applications

• Smaller motors under 25HP
• Industrial fans
• Electrical pumps

Is a motor protection circuit breaker the same as a manual motor protector?

Yes, a motor protection circuit breaker or MPCB is another name for a manual motor protector.

MS116 Range Brochure

MS116 Catalogue

CSA 165767

UL E137861
