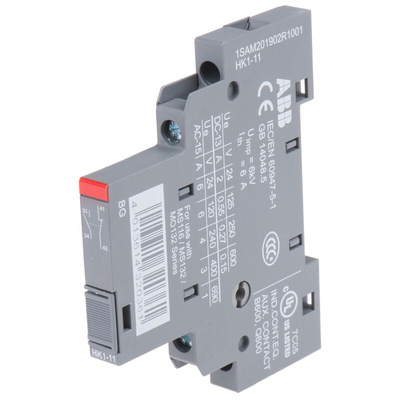

1SAM201902R1001 HK1-11, ABB Auxiliary Contact, 2 Contact, 1NC + 1NO, Side Mount

ABB Auxiliary Contact, 6kV Rated Impulse Withstand Voltage, 690V Rated Insulation Voltage - HK1 Series - 1SAM201902R1001

Use this ABB auxiliary contact to control secondary functions on your motor circuit. It's designed to operate alongside the main switching equipment and can control features like indicator lights. Thermoplastic housing provides protection from impact and abrasion, making this a suitable choice for use in harsh environments. The material also serves as an insulator to protect you from electric shocks. As this unit's terminals are located away from the reach of your fingers to prevent accidental contact with live parts, you can be sure of safe handling.

Features & Benefits

• Compact dimensions of 90 (H) x 9 (W) x 78.5mm (D) for installation in setups with limited space
• Can be used on both AC and DC circuits for versatility
• Broad operating temperature range of -25°C to +60°C for use in challenging settings

Applications

• Transportation industry
• Construction sites
• Oil and gas plants

How do I terminate cables to this auxiliary contact?

This auxiliary contact has screw terminals that make it easy to connect cables to it using a simple M3 Pozidriv screwdriver.

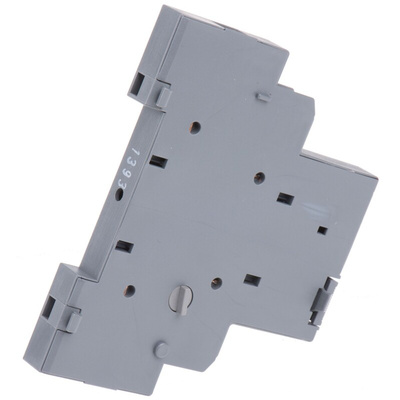

How do I mount this auxiliary contact?

This unit is designed to be side mounted to the contactor, so makes good use of space.

MS116 Range Brochure

MS116 Catalogue

CSA 165767

UL E137861
