GJL1211001R0101 B6-30-10-01, ABB B Series Contactor, 24 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

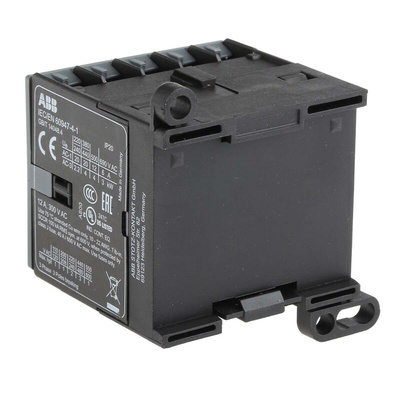

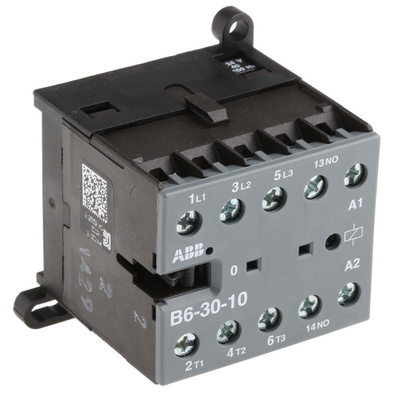

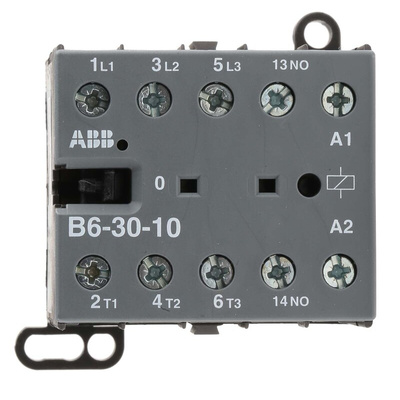

ABB Contactor, 690V Rated Insulation Voltage, 3 Poles - B Series - GJL1211001R0101 B6-30-10-01

Need a robust solution that keeps up with the switching demands of equipment with high-current loads? Choose this three-pole contactor from ABB. It rapidly opens and closes its contacts to control the repeated on/off states of your application. This space-saver measures just 57.5 (H) x 52.5 (W) x 46.7mm (D), so it's a safe bet for tight spaces. You can wall-mount the unit or simply snap it onto a DIN rail for tool-free convenience. Thanks to a mechanical durability of 10 million operating cycles, you can bank on long-lasting performance.

Features & Benefits

• Switch position indicator shows when the contacts are open to help boost electrical safety
• Screw terminals firmly secure conductors to help prevent accidental disconnection
• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Silent coil for use in noise-sensitive applications

Applications

• Lighting installations
• Security systems
• Medical imaging equipment
• Automated assembly lines

What temperatures can I use this contactor in?

This contactor gets the job done reliably in temperatures from -25°C up to +55°C.

How heavy is this unit?

It weighs just 175g, so adds minimal strain to a DIN rail or panel.

Brochure - Mini Contactors

Datasheet - GJL1211001R0101 B6-30-10-01
