0028203, Lapp UNITRONIC LiYY 3 Core YY Control Cable, 0.14 mm², 100m, Unscreened, Кабель

4451402
Номер производителя: 0028203Производитель: Lapp

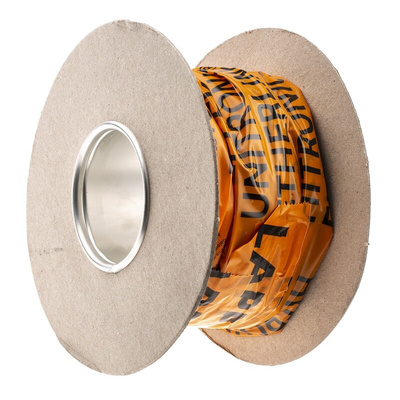

Цена за 1 катушку (100 метров)
12813.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

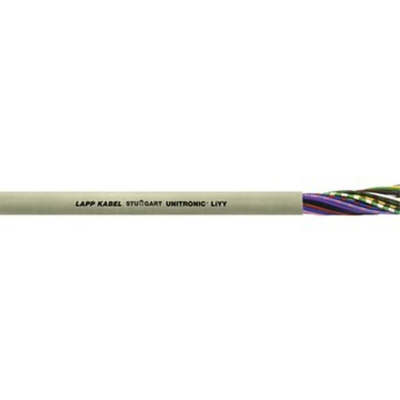

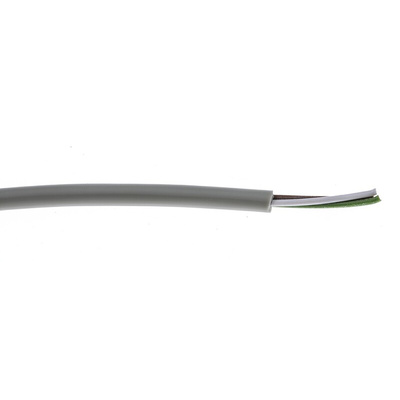

Unitronic® LiYY data cable

From Lapp, Unitronic series LiYY data cables have been developed from tried and tested VDE 0812 cables. LiYY designated cables are designed for multi-functional use, and are commonly used in signal and data transmission applications.

The multi-core cable is comprised of fine-wire bare copper strands, with a PVC core insulation and sheath.

This Unitronic low-frequency data cable has a small outer diameter for space-saving installations, and is also flame retardant. It can be used in dry or damp indoor environments, and is suitable for occasional flexing.

Features and Benefits

• Space-saving installation
• DIN colour code
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature in fixed installation: -40°C to +80°C

Applications

The Lapp Unitronic LiYY cable is suitable for many control and signal applications, and is commonly found in industrial computers. It can also be used in;

• Process and control equipment
• Office machines
• Measuring equipment

Accessories

Unitronic LiYY cable should be use din conjunction with accessories that match its capabilities, such as Lapp cable glands, such as the easy-to-install Skintop range.

• 361-9994 is an M12 IP68 Skintop ST-M Cable Gland
• 365-8422 is an M16 IP68 Skintop ST-M Cable Gland
• 365-8438 is an M20 IP68 Skintop ST-M Cable Gland
• 365-8444 is an M25 IP68 Skintop ST-M Cable Gland
• 362-0001 is an M32 IP68 Skintop ST-M Cable Gland
• 362-0017 is an M40 IP68 Skintop ST-M Cable Gland
• 362-0023 is an M50 IP68 Skintop ST-M Cable Gland

Standards

VDE 0482, VDE 0472, IEC 332.1 and DIN 4700 colour code

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Техническая спецификация
pdfLAPP Cable to Gland Cross Reference
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
26 AWG
Внешний диаметр:
3.4мм
Длина:
100м
Жилы:
18/0.10 мм
Кабель заземления:
Нет
Количество ядер:
3
Маслостойкость:
Да
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Минимальный радиус изгиба:
Fixed - 4 x D Occasional Flexing - 10 x D
Наполнитель:
Non-Wicking Filler
Номинал тока:
3 A
Номинальное напряжение:
350 В
Площадь поперечного сечения:
0.14 мм²
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Серия:
UNITRONIC LiYY
Сопротивление проводника:
138 Ом/км
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Unscreened
