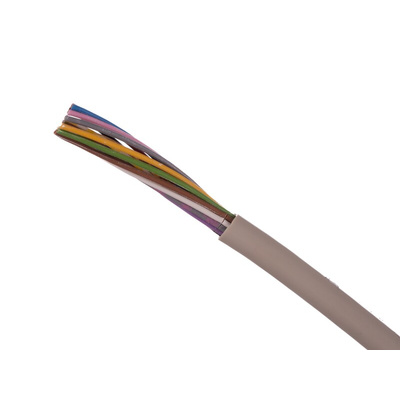

0028316, Lapp Multicore Data Cable, 0.25 mm², 16 Cores, 24 AWG, Unscreened, 100m, Grey Sheath, Кабель

LAPP Control Cable, 500V Voltage Rating, 7.7mm Outer Diameter - UNITRONIC series - 0028316

Use this multicore LiYY control cable from LAPP for reliable performance in signal and data transmission applications. For durability, the hardwearing PVC sheath is oil-resistant and able to withstand chemical and abrasive damage. An operating temperature range between -40°C and +80°C means you can use it in fixed industrial installations. Workplace safety is boosted by this cable's flame-retardant behaviour.

Features & Benefits

• Convenient 100m reel lets you cut the exact length you need for multiple applications
• High 500V voltage rating for use with demanding applications

Applications

• Process and control equipment
• Measuring instruments
• Office networks

How do I identify this cable in a network?

This control cable has a grey colour-coded sheath for easy identification in a busy setup.

How flexible is this cable?

In a fixed system, the cable bends four times its diameter. With occasional flexing, it can bend ten times its diameter.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
