0034312, Lapp Multicore Data Cable, 0.14 mm², 12 Cores, 26 AWG, Screened, 100m, Grey Sheath, Кабель

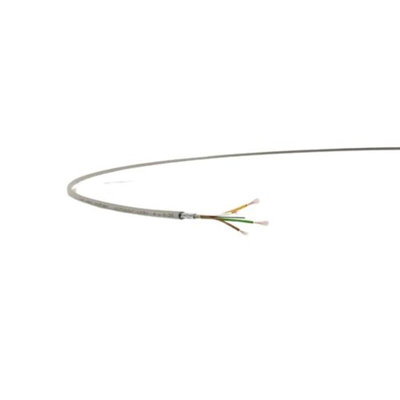

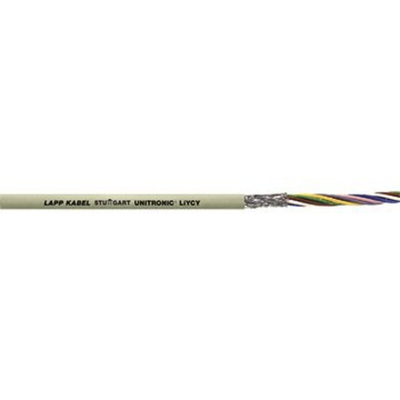

LAPP Screened Multicore Data Cable, 26AWG, 100m Length - UNITRONIC LiYCY series - 34312

Use this data cable from LAPP for seamless communication between sensors and control units in industrial environments. It features fine-wire copper conductors that ensure a stable and reliable connection. An outer jacket made of polyvinyl chloride (PVC) offers durability and impact resistance so you can use it in demanding industrial environments. This material also provides effective insulation to protect you from electric shocks. Thanks to tinned copper-braid shielding that protects this cable from electromagnetic and radio frequency interference (EMI and RFI), you can be sure of noiseless transmission.

Features & Benefits

• Comes on a 100m reel for large-scale applications or multiple use
• Wide operating temperature range of -40°C to +80°C for use in demanding conditions
• Voltage rating of 250V suitable for low-voltage applications
• Low conductor to conductor capacitance of 37pF/ft (picofarad per foot) for high data transmission rates

Applications

• Process and control instrumentation
• Low-voltage signalling
• Data buses

Is this cable flame-resistant?

As this cable's outer jacket is made of flame-resistant PVC material, it will reduce the spread of flames when a fire occurs.
