0034402, Lapp Multicore Data Cable, 0.25 mm², 2 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

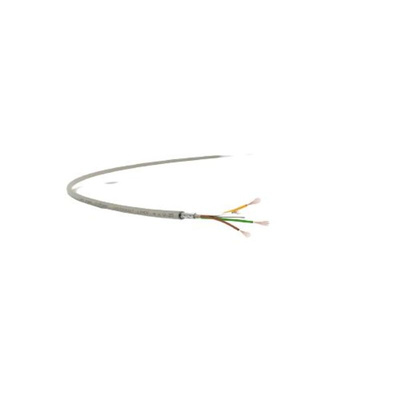

LAPP Grey Control Cable, 100m Length, 2 Cores - UNITRONIC Series - 0034402

Use this control cable from LAPP to link your electrical devices. As it's a LiYCY cable, it has a tinned copper wire braid screen and conductors twisted in pairs to reduce crosstalk and electromagnetic interference (EMI). This means you can expect clear and noiseless signals. Its copper conductors have a low electrical resistance of 79Ω/km to allow for a stable and reliable connection. A PVC outer sheath provides impact and abrasion resistance, so you can use this cable in tough industrial conditions. Thanks to a 100m length supplied on an easy-to-handle reel, you'll have enough cable to cut to suit your design needs.

Features & Benefits

• Current rating of 4.5A for energy efficiency and low heat dissipation
• Minimum bend radius of 15 times the cable diameter for flexible installation around corners
• Broad operating temperature range of -40°C to +80°C for use in challenging conditions
• Small outer diameter of 4.5mm to fit setups with limited space

Applications

• Computer systems
• Control and instrumentation equipment
• Office environments

What's the voltage rating of this cable?

This cable has a voltage rating of 250V, which makes it suitable for low-voltage applications.
