0034403, Lapp Multicore Data Cable, 0.25 mm², 3 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

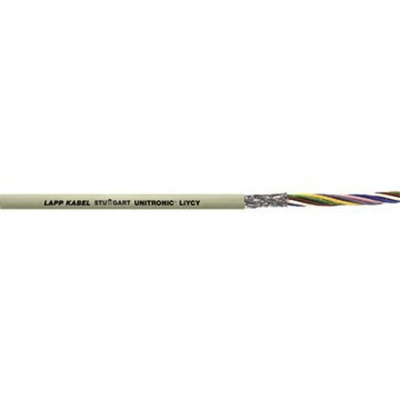

Unitronic® LiYCY cable

From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.

The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.

Features and Benefits

• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C

Applications

This CY multi-conductor cable is suitable for a variety of applications, such as;

• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast

Accessories

Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

Standards

VDE 482, VDE 0472, IEC 332.1 and DIN 47100 colour code

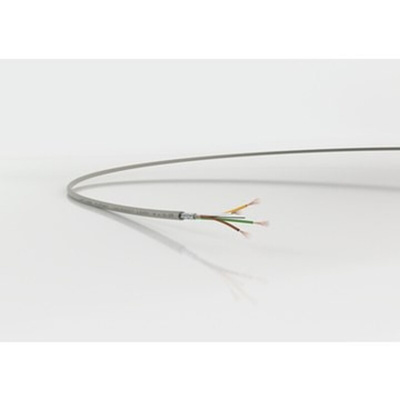

LAPP Control Cable, Multicore, 100m Length - UNITRONIC LiYCY Series - 0034403

When you need interference-free data transfer in a demanding industrial environment, choose this multicore control cable from LAPP. For reliable signal transfer, it comes with a tinned-copper braid shield that effectively screens the conductors from electromagnetic interference. Thanks to a 0.25mm² cross-sectional area and 4.7mm outer diameter, it's a practical and flexible choice for fixed installations where space is limited.

• Durable PVC sheathing is abrasion-resistant for a long service life
• Flame-retardant insulator helps prevent the spread of fire
• Three highly conductive copper cores provide a dependable electrical connection

Applications

• Process control
• Measurement equipment
• Signal and broadcast technology

Is this cable suitable for challenging conditions?

Yes, thanks to its wide operating temperature range between -40°C and +80°C, this cable can cope with harsh settings. It also features a non-wicking filler to repel liquid away from the cores, helping protect against equipment failure in damp environments.
