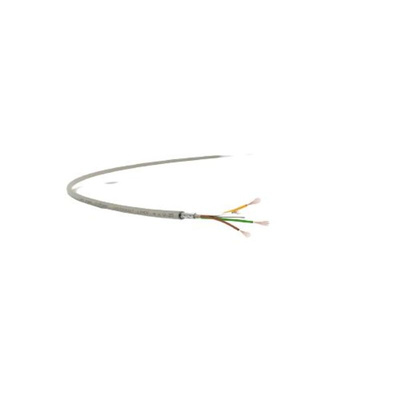

0034405, Lapp Multicore Data Cable, 0.25 mm², 5 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

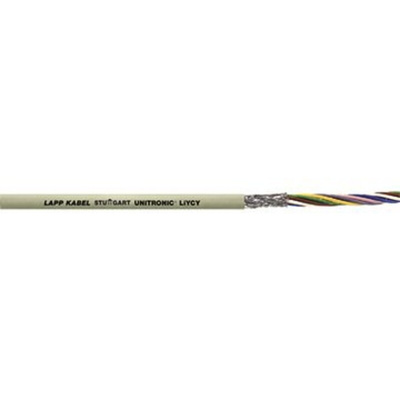

LAPP Grey Control Cable, 100m Length, 5 Cores - UNITRONIC Series - 0034405

For reliable signal transmission in control and instrumentation systems, opt for this flexible cable from LAPP. A compact outer diameter of 5.6mm makes it a good fit for setups where space is at a premium. As a LiYCY cable, it has a tinned copper braid over conductors twisted in pairs to provide an effective shield against crosstalk and electromagnetic interference. This construction means it delivers clear signals without noise. The cable comes supplied on a reel with a length of 100m length, so you'll have plenty on hand for either long runs or multiple jobs.

Features & Benefits

• PVC outer sheath is durable and impact-resistant, for use in harsh environments
• Voltage rating of 250V for compatibility with low-voltage applications
• 5-core design for transmission of different signals at the same time, minimising cable clutter
• Current rating of 4.5A for energy efficiency and minimal heat dissipation

Applications

• Telecommunication industry
• Serial control devices
• Process and packaging equipment

What's the weight of this cable?

This cable has a light weight of 51.2kg/km, making it easy to handle.

How flexible is this cable?

This cable has a minimum bend radius of 15 times its outer diameter, so it's flexible enough for installation in complex setups and around corners.
