0034408, Lapp Multicore Data Cable, 0.25 mm², 8 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

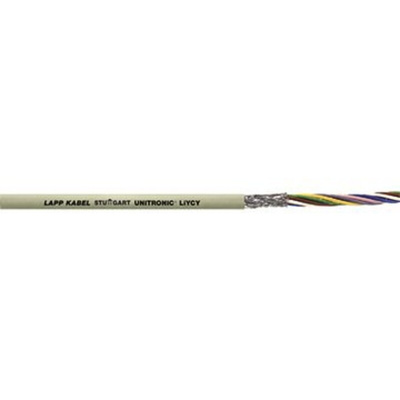

LAPP Grey Control Cable, 100m Length, 8 Cores - UNITRONIC Series - 0034408

Use this LAPP control cable to achieve reliable data signal transmission in industrial and commercial environments. It's unterminated at both ends, giving you the freedom to either extend an existing connection or customise it with an adapter of your choice. Inside, there are eight copper conductors that can transmit different data signals at the same time. They have low electrical resistance, so you enjoy a stable link. Thanks to PVC sheathing, this cable is durable and resistant to wear, so you can use it in harsh environments. It's commonly found in complex setups where flexibility is essential.

Features & Benefits

• Light weight of 73kg/km for easy handling
• Cable length of 100m can be used whole or cut to size
• Tinned copper braid shield to withstand crosstalk and electromagnetic interference for noiseless signals
• Compact outer diameter of 7.1mm to suit setups with limited space
• Low conductor-to-conductor capacitance of 120nF/km for high integrity signals

Applications

• Serial devices
• Measurement and instrumentation devices
• Robotics and automation

What's the current rating of this cable?

This cable has a 4.5A current rating, which means it's energy-efficient and won't dissipate a lot of heat.
