0034416, Lapp Multicore Data Cable, 0.25 mm², 16 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

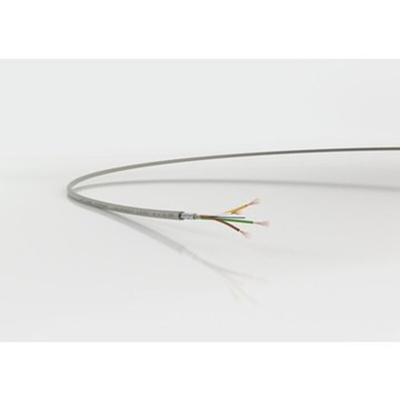

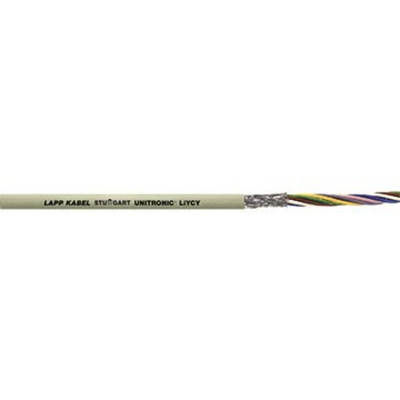

LAPP Grey Screened Control Cable, 24AWG, 100m Length - UNITRONIC Series - 0034416

Need a reliable cable for power and signal connections in your electronic devices? Choose this control cable from LAPP. It has a minimum bend radius that's 15 times its diameter so it won't be damaged if it's installed around tight corners. As it's 100m long, you'll have a large stock for multiple connections. A broad operating temperature range between -40°C and +80°C means you can safely use this cable in harsh environments. It's also flame-retardant to stop fire from spreading, enhancing workplace safety.

Features & Benefits

• Outer diameter of 8.4mm to fit in small connectors
• Polyvinyl chloride outer jacket offers insulation protection to prevent electric shocks
• Oil-resistant to prevent damage in heavy-duty settings

Applications

• Packaging industry
• Automotive workshops
• Industrial control panels

What type of screening does this cable have?

This table features a tinned copper braid screen around its conductors, which shields it from signal interference and prevents cross-talk between its conductors.
