0034502, Lapp Multicore Data Cable, 0.34 mm², 2 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

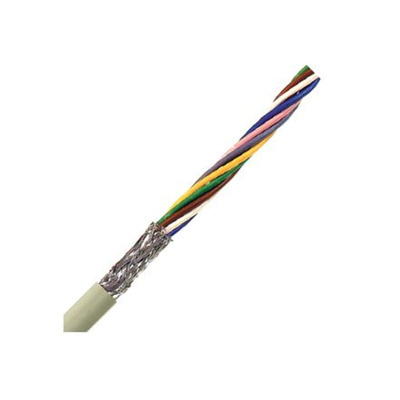

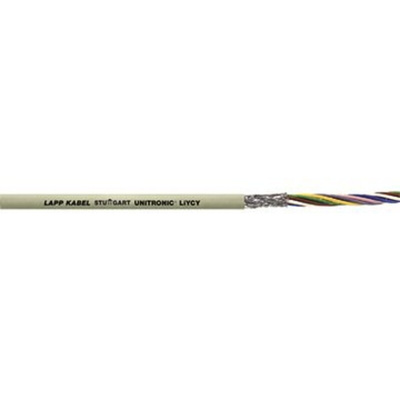

Unitronic® LiYCY cable

From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.

The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.

Features and Benefits

• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C

Applications

This CY multi-conductor cable is suitable for a variety of applications, such as;

• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast

Accessories

Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

Standards

VDE 482, VDE 0472, IEC 332.1 and DIN 47100 colour code

LAPP Data Cable, 500V Voltage Rating, 4.9mm Outer Diameter -UNITRONIC LiYCY Series - 0034502

Is electrical interference scrambling your system? Block the noise with this dual-core data cable from LAPP. As the product uses tinned copper braiding, it's shielded from high EMI levels to guide signals securely between appliances. It's fit for tight cabinets, as the cord's flexible stranded conductors bend for hassle-free installation. Narrow entries are a breeze for this lead's 4.9mm outer diameter. And thanks to a durable PVC sheath, it's guarded against nicks and cuts.

Features & Benefits

• Conductive copper cores for reliable signalling connections
• Resists surge voltages up to 1.5kV, minimising the risk of damage from power faults
• Handles ambient temperatures between -40°C and +70°C to perform in demanding settings

Applications

• Logistics industry
• Data centres
• Fluid management

How can I identify the wires in this cable?

This lead comes with colour-coded cores, so telling its connections apart is a doddle.
