1119118, Lapp ÖLFLEX CLASSIC 110 YY Control Cable, 18 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG, Кабель

LAPP Control Cable, 18AWG, 50m Length - ÖLFLEX CLASSIC 110 Series - 1119118

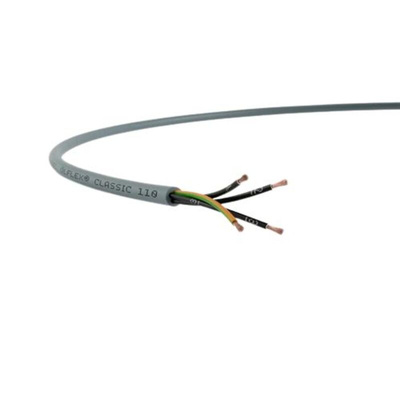

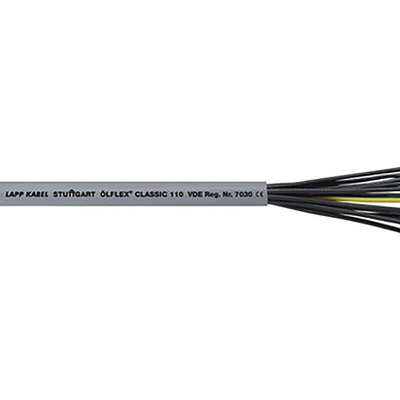

Use this robust cable from LAPP to connect sensors and actuators to control units in industrial systems. Thanks to its two unterminated ends, you have the freedom to choose a connector that suits your system's needs, making it a versatile choice. It's a YY cable, which means that both its insulation and outer sheath are made of PVC (polyvinyl chloride). This material provides impact and abrasion resistance for long-lasting performance as well as protection from electric shocks. You'll find cables like this one commonly used in manufacturing and automation applications.

Features & Benefits

• Copper conductor material for a reliable connection
• Wide operating temperature range of -40°C to +80°C for use in challenging environments

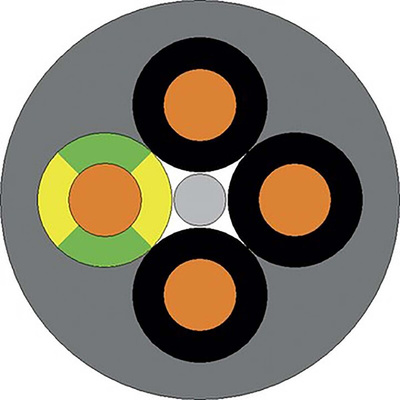

• Cores are twisted in layers to prevent electromagnetic interference (EMI) and ensure noiseless transmission
• Minimum bending radius of 15 times the cable diameter for maximum flexibility

Applications

• Machine tool engineering
• Bottling plants
• Automotive production lines

What's the length of this control cable?

The control cable comes in a length of 50 metres. This means there's enough for you to cut and either extend an existing connection or create a new one.

Standards

VDE 0295, Part 5
