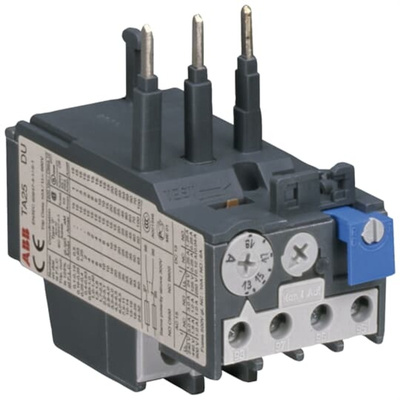

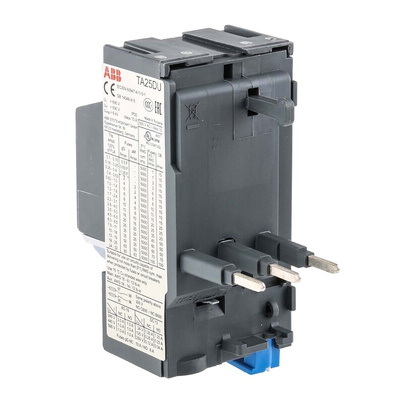

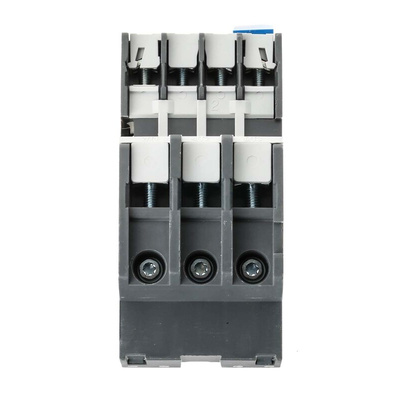

1SAZ211201R1043, ABB TA25 Thermal Overload Relay 1NO + 1NC, 7.5 → 11 A F.L.C, 11 A Contact Rating, 2.2 W, 3P, A Line, Реле

ABB Thermal Overload Relay, Clip-On Mounting, 10A Trip Class - TA25 Series - 1SAZ211201R1043

Shield your electronic device from faults using this thermal overload relay from ABB. When the motor draws excess current, the unit protects the circuit and windings from overheating. You can adjust the motor rating between 7.5 and 11A to meet your equipment's demands. The housing is rated IP20, meaning your fingers are protected from live parts so there's no risk of getting a shock. Mount this relay in a jiffy by clipping it to your contactor in a vertical position. It's resistant to mechanical shock for durability in challenging operations.

Features & Benefits

• Rated impulse withstand voltage of 6kV assures you it can withstand high-voltage fault currents
• STOP and test function for quick troubleshooting
• Trip indicator lets you check the unit's status at a glance
• Operational current rating of 11A for safe use in heavy-duty equipment

Applications

• Electrical engineering
• HVAC systems
• Conveyor belts
• Construction sites

What type of contactor can I use this relay with?

To complete the setup, use this relay with a block contactor from the A9 to A40 ranges.

Can I reset this relay?

Yes, you can reset this relay using the automatic or manual reset mechanism.

Overload Relays Data Sheet

CSA LR15332-64

UL E48139

Datasheet - 1SAZ211201R1043

Brochure - Thermal Overload Relays

Instruction Sheet - 1SAZ211201R1043
