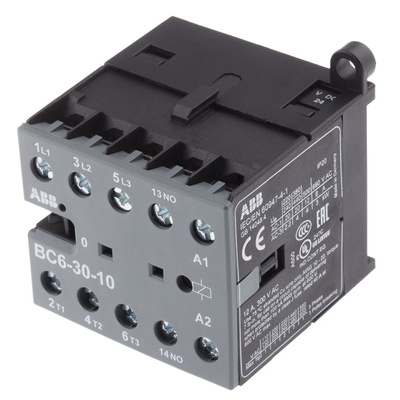

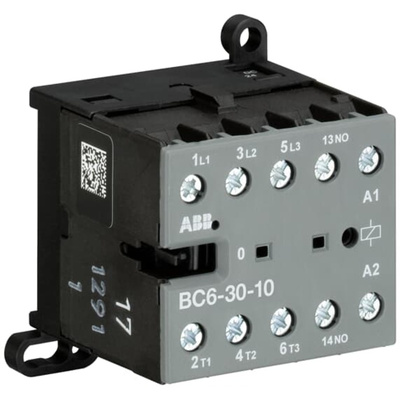

GJL1213001R0101 - BC6-30-10, ABB B Series Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

ABB Contactor, 1NO Auxiliary Contact, 2W Power Loss Per Pole - B Series - GJL1213001R0101 - BC6-30-10

Take charge of heavy-duty electrical loads in tight spaces with this contactor from ABB. It provides power up to 4kW, driving demanding motor appliances without breaking a sweat. As it measures just 46.7 (L) x 52.5 (W) x 57.5mm (H), the unit easily tucks into busy cabinets for flexible installation. A three-pole design makes it a sure fit for single-phase and three-phase supplies. To take system management off your hands, a built-in auxiliary contact automatically sends a signal to linked devices when the contactor switches.

Features & Benefits

• Switches up to 600 times an hour to keep up with intense control tasks
• Hum-free coil cuts down on disruptive operating noise
• Contact position indicator, signalling switch status for easy spot checks
• Power loss of 2W per pole to minimise electrical usage
• Mechanical lifespan of 10 million cycles for long-lasting control

Applications

• Construction industry
• Power transformers
• Renewable energy production

How do I fit this contactor into my system?

You can screw this unit to a wall or clip it onto a standard DIN rail, so it fits exactly where you need it.
