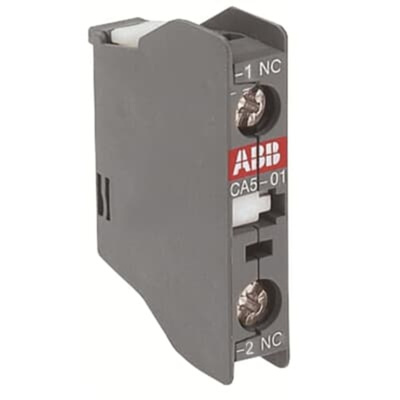

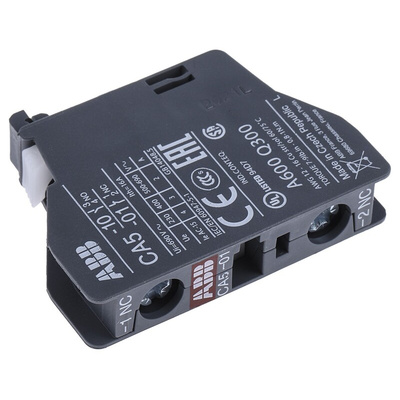

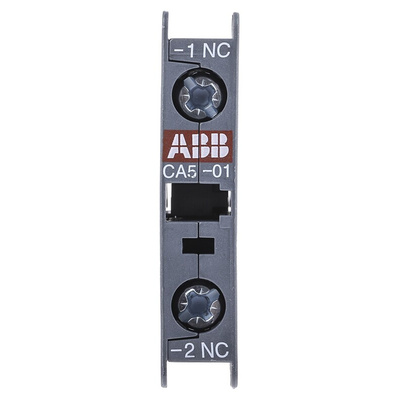

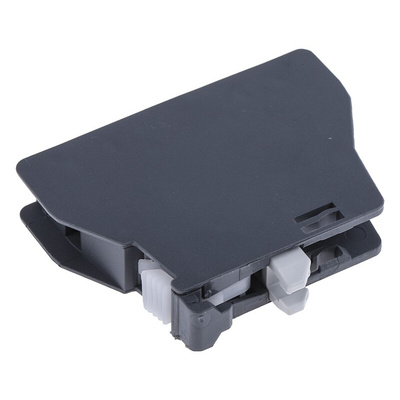

1SBN010010R1001, ABB Auxiliary Contact Block, 1 Contact, 1NC, Front Mount

Auxiliary Contact Blocks for Contactor Series A9 to A110

Front or side vertical mounting

Note

ONLY SUITABLE FOR USE WITH 'A' SERIES CONTACTORS

ABB Auxiliary Contact Block, 1 Pole, 24 to 690V AC Operational Voltage - CA5 Series - 1SBN010010R1001

Monitor the operating status of contactors in your industrial equipment using this auxiliary contact block from ABB. When it senses a change in the contact position of the main contactor, it transmits a signal to notify the control system. Thanks to its front mount design, you can install this unit by directly attaching it to your contactor. It comes with screw terminals, so connections can be made quickly and are secure enough to ensure reliable signal transmissions.

• Low power loss of0.1W for energy-efficient operation
• Rated operational voltage between 24V and 690V AC for versatility of use
• Light weight of 0.014kg means there's minimal strain on the contactor

Applications

• Electrical engineering
• Robotics systems
• Agricultural equipment
• Control panels

How long will this auxiliary contact block last?

This auxiliary contact block has a mechanical service life of 10 million cycles, which means you can expect to use it for a long time.

How durable is this contact block?

Thanks to a switching frequency rating of 3600 cycles per hour, you can operate this auxiliary contact block regularly without the risk of a breakdown.
