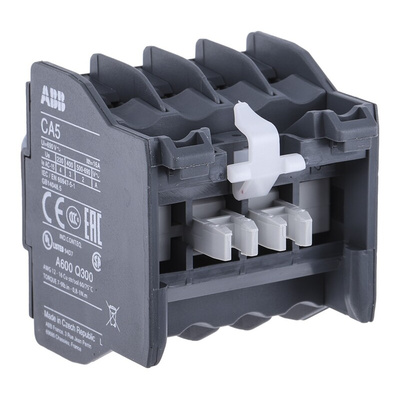

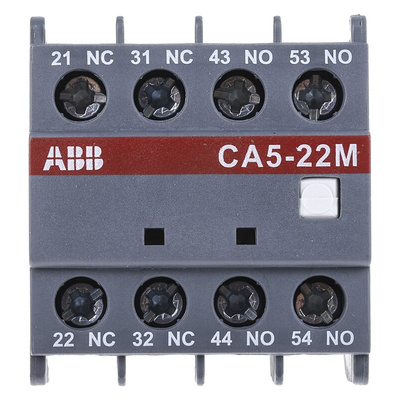

1SBN010040R1122 - CA5-22M, ABB Auxiliary Contact, 4 Contact, 2NC + 2NO, Front Mount

ABB Auxiliary Contact, 24V Voltage Rating, Screw Terminals - CA5 Series - 1SBN010040R1122 - CA5-22M

Need to send signals from your switching device to a logic controller? Choose this auxiliary contact from ABB. By attaching it to a contactor, you can use it to expand your circuit and operate other equipment such as a status indicator. When the contactor's state changes, the two NC and two NO contacts open or close. The unit then sends the data to your linked components, switching on or off to give you reliable control of your industrial process.

Features & Benefits

• Compatible with A-series contactors for easy system building
• Light weight of 60g doesn't put strain on equipment
• IP20 rating on auxiliary terminals indicates protection from objects larger than 12mm
• Compact dimensions of 44 (W) x 47 (H) x 39mm (L) to save space

Applications

• Electric motors
• Relay logic circuits
• Solid-state electronics

What's the maximum switching frequency of this auxiliary contact?

The component has a maximum switching frequency of 1200 cycles per hour for electrical operations, and that rises to 3600 for mechanical functions.

What current rating does this unit have?

This contact uses a current of 6A, for compatibility with standard equipment.
