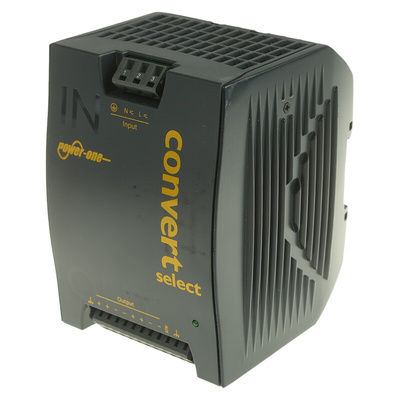

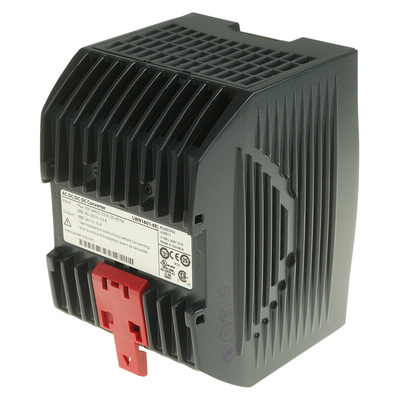

LWN1601-6EG, BEL POWER SOLUTIONS INC LWN Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 10A, Блок питания

BEL POWER SOLUTIONS INC Power Supply

The Bel Power Solutions Inc. W series power supply is dual output primary controlled AC-DC or DC-DC flyback converter with a constant switching frequency of 130kHz. Its high-efficiency results from the power-factor-corrected, single-step conversion of the input voltage to a low output voltage. It has an input voltage ranging between 85VAC and 264VAC/90VDC to 350VDC. This power supply has an output current rating of 10A at 24VDC output voltage. Its output voltage is adjustable within a range between 24VDC and 25.8VDC and delivers an electrically isolated safety extra-low voltage (SELV) and low output noise.
Note:
Operating temperature is without de-rating

Features and Benefits

Green LED for status indication
High efficiency up to 87%
Highly reliable
Independently regulated outputs
Internal protection circuit
MTBF is greater than 600000 hours
Operating temperature ranging between -40°C and 60°C
Power rating is up to 250W
Rugged, 35mm snap-fit design
Virtually no inrush current

Applications

Building control systems
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation

Certifications

CE certified
cCSAus
cULus
EN
IEC
UL approved

Approvals

EN/IEC60950; UL1950; CSA22.22 950; IEC/EN50178; IEC61010; UL508
