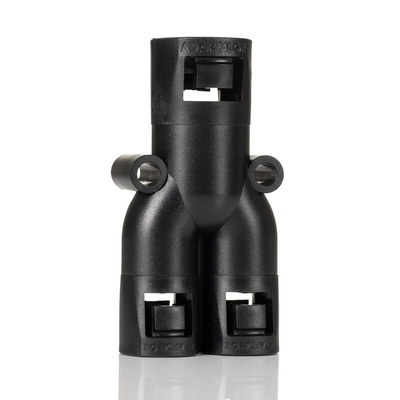

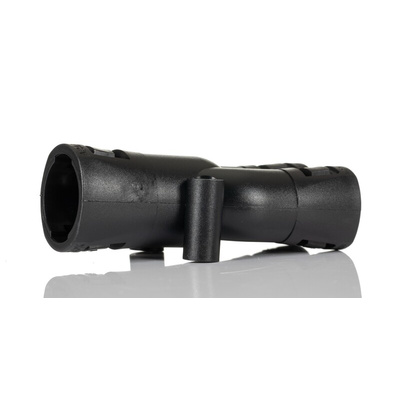

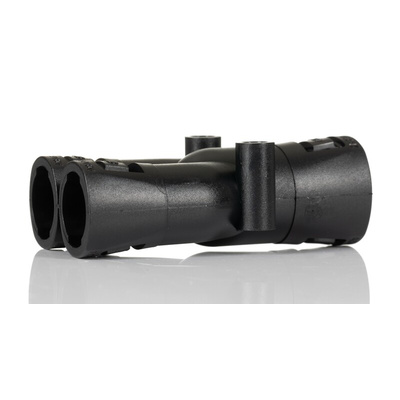

AL211616/Y, Adaptaflex Y Piece, Conduit Fitting, 16mm Nominal Size, Nylon 66, Black

Adaptaflex Conduit Fitting, 3 Way, Push and Twist Mounting - Adaptalok Series - AL211616/Y

Wrap up your cabling tasks in no time with this conduit fitting from Adaptaflex. It's a three-way coupler, so it's ideal for making simple and quick branch connections. When used with compatible ducting it helps to protect your electrical wires and also makes them easier to route. A user-friendly push-and-twist mounting method makes the connector a cinch to install without needing to rummage through your toolbox. Its tough PA66 construction gives it resistance to mechanical stress, for longevity in harsh operating conditions. Don't worry about accidental or unauthorised removal, as you need a tool to loosen the fitting.

Features & Benefits

• IP66-rated connection that's dust-tight and protected against high-pressure water jets and rain
• Resists corrosion, for compatibility with moist conditions
• Internal self-locking clips hold it securely in place
• Withstands the corrosive effects of most fuels and oils, so you can be sure of its extended service life

Applications

• Hospitals and medical centres
• Food and beverage industries
• Public infrastructure
• Aerospace technology

What type of conduit is this fitting compatible with?

This versatile connector is suitable for use with both fine-pitch and coarse-pitch flexible corrugated conduits.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptalok System accessories

Datasheet - AL211616/Y

Catalogue - Flexible Conduit Systems
