2303132, Phoenix Contact EBL Series Jumper Bar for Use with DIN Rail Terminal Blocks

4460793
Номер производителя: 2303132Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
920.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Universal Terminals

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

Individual terminals and complementary accessories

Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U

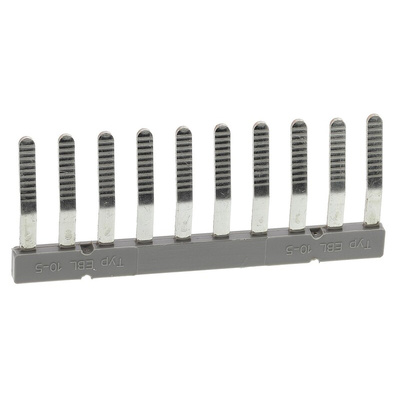

Phoenix Contact Jumper Bar For Terminal Block, 5.2mm Pitch, 10 Positions - EBL 10- 5 - 2303132

Connect devices on a terminal block to a power source with this jumper bar from Phoenix Contact. As it eliminates the need for running separate wires for each device, the installation process is streamlined to save you time and effort. Thanks to the bar's 10-position structure, you can connect several appliances to a single wire simultaneously. This unit is made from hard-wearing copper, which offers excellent electrical conductivity and resistance to corrosion. For flexibility, you can cut it to size to adapt to your setup.
As this component also comes with polyamide insulation, it won't overheat in demanding environments. Polyamide also protects you from electric shock so you can handle it safely. Use this jumper bar to quickly set up electrical connections in your control panels without having to rewire the entire system.

• Light weight of 3.76g for reduced strain on equipment
• Screw mounting for a secure hold, even with vibration
• Simple design requires little or no maintenance
• Slim pitch size of 5.2mm to fit into small spaces

Approvals

E Exei/II; KEMA

Техническая спецификация
pdfDatasheet
pdfLine Drawing - 2303132
Для использования с:
DIN Rail Terminal Blocks
Серия:
EBL
Тип аксессуара:
Jumper Bar
Тип монтажа:
Винт
