0202138, Phoenix Contact EB Series Jumper Bar for Use with DIN Rail Terminal Blocks

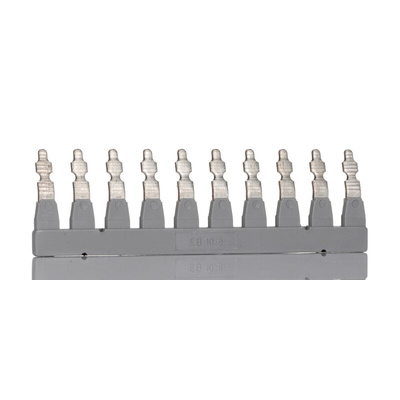

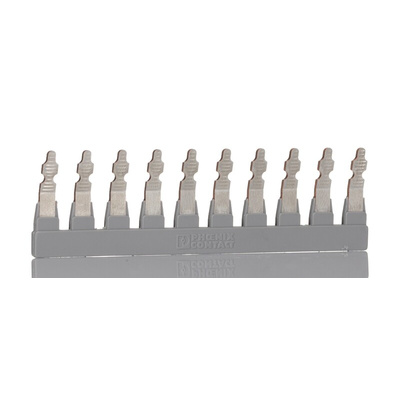

Phoenix Contact Jumper Bar, 10 Positions, 8mm Pitch - EB 10- 8 - 0202138

Looking for an easy way to connect terminal blocks? Try this jumper bar from Phoenix Contact. It helps you to connect multiple points in an electrical circuit, without the hassle of running lots of small wires. This saves you time and cuts down on operator fatigue.
As the bridge is made from highly conductive copper, you can be sure your circuits will tick along reliably. This metal is also durable and corrosion-resistant, giving you the benefit of an extended service life. PA insulation puts a barrier between your fingers and live currents to prevent electric shocks.
A jumper bar like this one is frequently used in electrical applications such as motor control circuits. Besides allowing for a convenient connection, it's also useful for monitoring the run status of a motor.

Features & Benefits

• Supplied in a pack of five, so you've got spares on hand when needed
• Light weight of 11.524g puts minimal strain on a DIN rail
• Wide operating temperature range between -60°C and +105°C means it's compatible with harsh industrial settings
• Screw mounting for simple installation using only a screwdriver

Approvals

E Exei/II; KEMA

EB 10- 8 Insertion bridge, Number of positions: 10, Data Sheet

Line Drawing - 0202138
