3004524, Phoenix Contact UK 6 N Series Grey DIN Rail Terminal Block, 0.2 → 6mm², Single-Level, Screw Termination, ATEX

Universal Terminals

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.

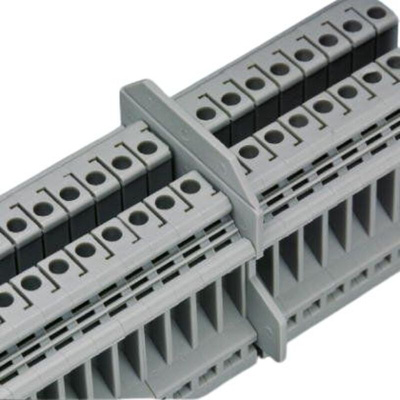

Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

Individual terminals and complementary accessories

Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U

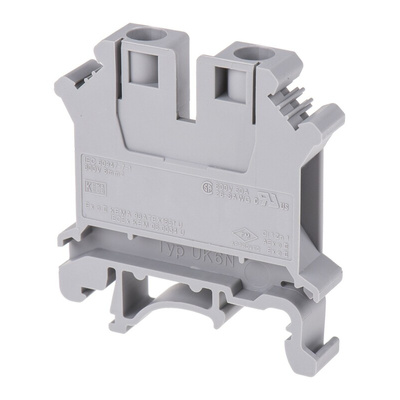

Phoenix Contact Feed-Through Terminal Block, 6 mm², 41A - UK 6 N - 3004524

Protect sensitive devices such as relays with this terminal block from Phoenix Contact. It features universal screw terminals and is a practical choice for ensuring crucial safety functions in your electrical circuit.

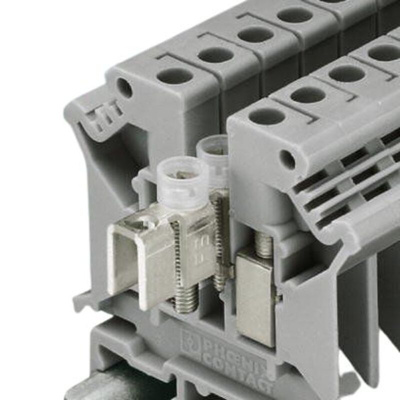

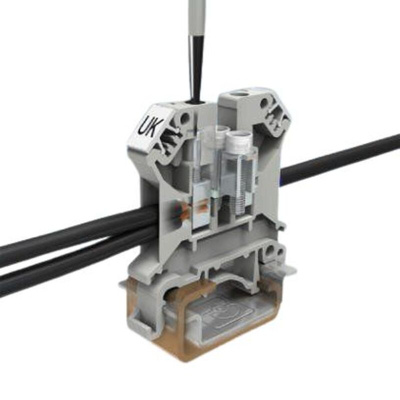

The device's standard foot means you can easily snap it onto two popular DIN rail profiles, the NS 35 DIN rail or the NS 32 DIN rail with G shape. Its versatile screw connection meets global connector norms and accepts conductors in multiple sizes. Maintenance-free connections are achieved as a result of the unit's Reakdyn principle, which removes the need for re-tightening connection screws. Each terminal can be separately labelled for clear recognition of the terminal points.
A block like this one is suitable for shielding a sensor from over-current or short circuits. It's frequently used in industrial automated and signalling applications.

• Safe to use in areas where explosive atmospheres may be present
• Polyamide insulating material
• Voltage rating of 800V
• Current rating of 41A
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Approvals

E Exei/II; KEMA
