0442079, Phoenix Contact 2-Way USLKG 6 N Earth Terminal Block, 24 → 8 AWG Wire, Screw Down, Polyamide Housing, ATEX, Блок заземления

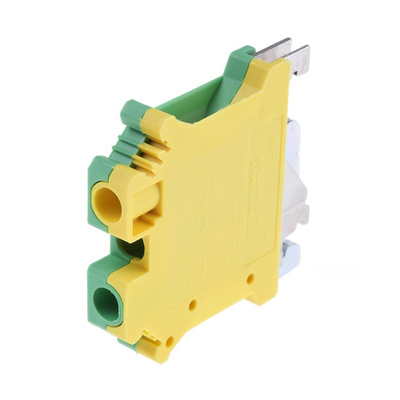

Phoenix Contact Earth Terminal Block, M4 Screw Thread, Single-Row Construction - USLKG 6 N - 0442079

Stay one step ahead of electrical or magnetic interference on your DIN rail-connected components with this earth terminal block from Phoenix Contact. It links earth wires to the rail so that it operates as a ground bus bar to protect connected devices from ground feedback currents. The unit's PA housing doubles as an insulator to safeguard you from shocks.
This device is easy to install – you need just a simple screwdriver to get the job done. With compact dimensions of 42.5 (L) x 8.2 (W) x 45.8mm (H), it slips neatly into setups where space is tight. As it handles cable sizes between 24 and 8AWG, this is a flexible workmate that meets the needs of your setup. You'll find this component used in the transportation industry, as well as in automation and control applications.

Features & Benefits

• Rated surge voltage of 8kV to handle sudden power spikes without suffering damage
• Wide operating temperature range between -60°C and +130°C for use in extreme conditions
• ATEX approved for use in explosive environments
• UL94V0 rating means it stops burning in 10 seconds or less in the event of a fire, making it suitable for volatile settings

Approvals

E Exei/II; KEMA

USLK Series

Datasheet

Line Drawing - 0442079
