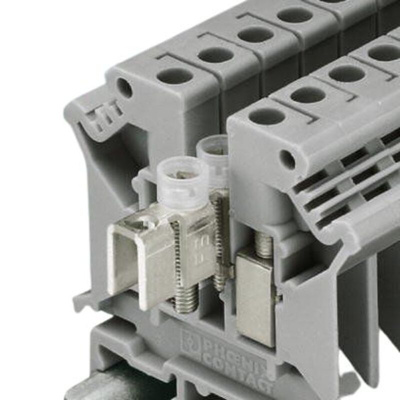

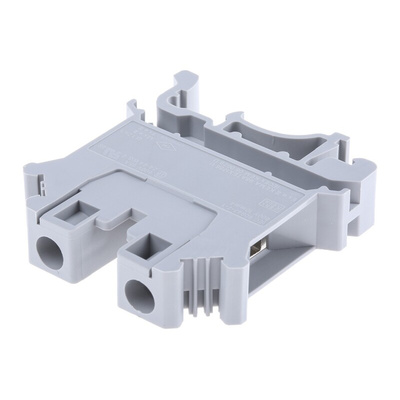

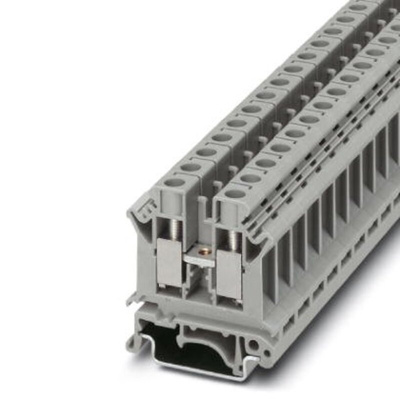

3005073, Phoenix Contact UK 10 N Series Grey DIN Rail Terminal Block, 0.5 → 10mm², Single-Level, Screw Termination, ATEX

Universal Terminals

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

Individual terminals and complementary accessories

Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U

Phoenix Contact Feed-Through Terminal Block, 10mm², 76A - UK 10 N - 3005073

Connect and protect complex equipment in your electrical circuit with this user-friendly terminal block from Phoenix Contact. It's easy to wire and install, while offering a durable and safe power connection.
The unit's polyamide housing provides excellent electrical insulation to prevent excess current or short circuits from surging across connecting wires and damaging other components. This plastic is also highly resistant to extreme temperatures and abrasion, so it offers a long service life. Simple, yet highly effective, screw-in connectors withstand vibration to ensure wiring doesn't accidentally work loose. As the terminal block is universal, it's compatible with a wide range of conductor sizes.
You can safely use this component in areas where combustible dust or gases may be present. It's a reliable choice for vehicle electronics, power supplies and signalling equipment.

• Operating temperature range of -60°C to +130°C
• Compatible with wires ranging in size from 20AWG to 6AWG (American Wire Gauge)
• Can handle high surge voltage of up to 9.8kV
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Approvals

E Exei/II; KEMA

KEMA 98ATEX1786U
