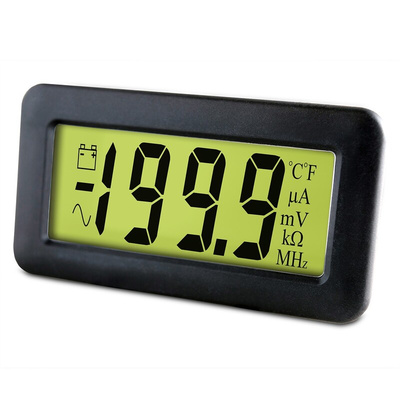

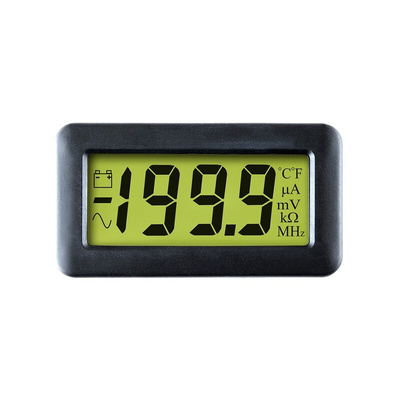

200mV LCD Voltmeter with Backlighting
The DPM 750S-BL panel meter is a 3 digit LCD with 12.7mm digit height, and a 200mV d.c. measurement range, auto-zero and auto-polarity. The device features a negative rail generator which enables the meter to measure a signal reference to its own power supply GND.
A low drift bandgap referenced circuit ensures accurate readings over a wide temperature range. The modules low-cost means that it is suitable for both high and low volume applications. The device is supplied with a plastic mounting bezel. A waterproof seal to IP67 / NEMA 4X is achievable, using the optional BEZ 700-IP bezel.
Features and Benefits
12.7mm Digit Height
200mV d.c. Full Scale Reading
3.0 to 7.5V or 6.0 to 1.5 d.c. Operation
Auto-zero and Auto-polarity
Programmable Decimal Points
LED Backlighting (30mA @5V typ.)
Low Battery Warning
Bandgap Reference
LCD 5.5 to 19mm Digit Height
All have an operating temperature range of 0 to 50°C unless specified otherwise.
Техническая спецификация
