RSF66A50A100, Sensata / Cynergy3 Sensata/Cynergy 3 RSF66 Series Vertical Polyphenylene Sulfide Float Switch, Float, 1m Cable, Direct Load, 240V ac Max,

Cynergy3 RSF66 Double Float Switches

The Cynergy3 RSF66 dual switch point series are float switches for high and low level switching. The RSF66 float switches are made using Polyphenylene Sulphide (PPS) in grey, which is ideal for a wide range of different liquids. This makes the RSF66 range versatile for different applications.
Dual float switches can be used to control filling or emptying tanks with electromechanical relays.

What length cable do they come with?

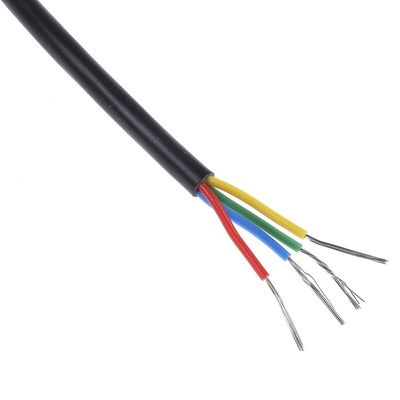

The RSF66 series comes with a 1m standard cable length with flying lead. It is a four core PVC cable.

What temperature can they withstand?
-10°C to +85°C / +14°F to +185°F

What is their power capacity?
RSF66 float switches have a power capacity of 25VA.

Approvals:
WRAS, UL and NSF approved

Versions Available (including upper/lower switch levels):
(446-2597) RSF66B50B150 - Double 50/150mm Filling Control
(446-2581) RSF66B50B100 - Double 50/100mm Filling Control
(446-2575) RSF66A50A150 - Double 50/150mm Emptying Control
(446-2569) RSF66A50A100 - Double 50/100mm Emptying Control
(348-7983) RSF66A25B75 - Single 30/75mm
(348-7999) RSF66A25B100 - Single 30/100mm
(348-8009) RSF66A25B125 - Single 30/125mm
(348-8015) RSF66A25B150 - Single 30/150mm
(348-8021) RSF66A25B175 - Single 30/175mm

Warning

The Cable entry point must NOT under any circumstances be submerged:
– On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
– On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Approvals

UL recognised

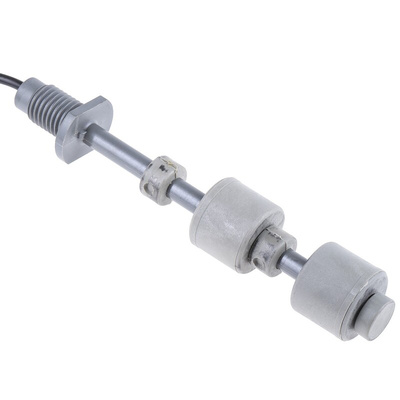

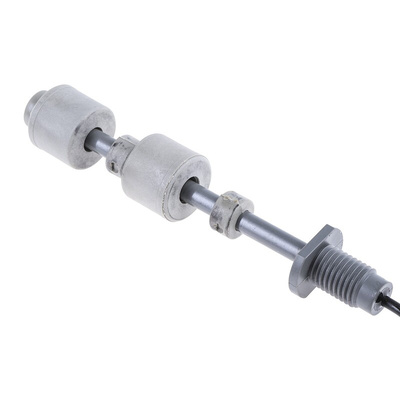

Sensata Cynergy3 Vertical Float Switch, Polyphenylene Sulfide, 1 m - RSF66 Series - RSF66A50A100

Use this dual float switch from Sensata Cynergy3 to control the filling or emptying of tanks with electromechanical relays. Its polyphenylene sulphide (PPS) body and nitrile gasket make it resistant to abrasion and sunlight, so it's suitable for use in tough industrial environments. These materials can also withstand exposure to harsh chemicals, including acids, alkalis and bleaches. The switch mounts vertically on the top of a fluid tank or reservoir, so installation is straightforward. It's suitable for high-level and low-level switching in a wide range of applications, including food and drink processing.

Features and Benefits

• Broad operating temperature range of -10°C to +85°C for use in demanding conditions
• 1 m cable sheathed in PVC (polyvinyl chloride) for durability and flexibility during installation
• Total length of 134 mm for use in applications where space is limited

What safety precautions should I take when installing this switch?

The cable entry point should not be submerged in water. To ensure safe use, install the switch so that the mounting thread and cable entry are above the maximum liquid level.
