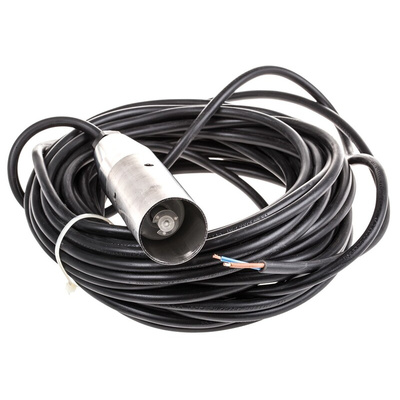

SLP4AP15, Sensata / Cynergy3 SLP Series Vertical Stainless Steel Float Switch, Float, 15m Cable, Direct Load, 250V ac Max, 250V

Sensata Cynergy3 Single Switch Submersible Level Probe, Direct Load, 15m - SLP Series - SLP4AP15

Use this high-tech Sensata Cynergy3 submersible level probe to regulate liquid levels. The device is vertically mounted and has a direct load output. It's suitable for a range of applications where level indication is required, such as boreholes and reservoirs. The body is made of non-corroding stainless steel and is submersible up to 15m, which is the full length of the attached PVC (polyvinyl chloride) cable. A minimum fluid SG (specific gravity) of 0.8 and a maximum switching power of 25VA are required for safe operation.

Features & Benefits

• Suitable for restricted space applications
• Configurable for NO or NC contacts to operate on either rise or fall of liquid
• Switch is cable mounted for ease of installation

How does this float switch work?

The switch is designed for suspension into liquid by its cable. It can be configured to give make or break action on either rise or fall of liquid level by removing the protective shield and reversing the float orientation. The switching level can be adjusted by changing the cable length.

SLP Suspended Level Probe Datasheet

Instruction Sheet - Float Switches Installation Notes

Selection Guide - Level Sensors & Switches
