416989, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3L/min, 20 bar, 230 V, Насос

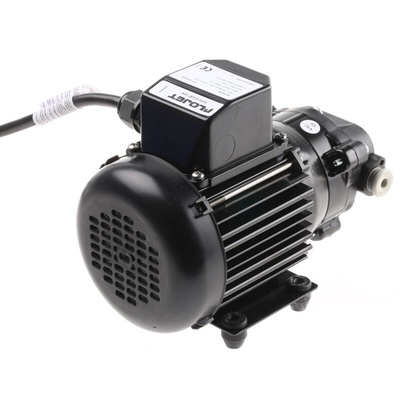

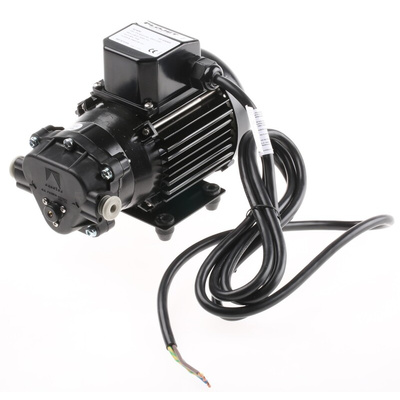

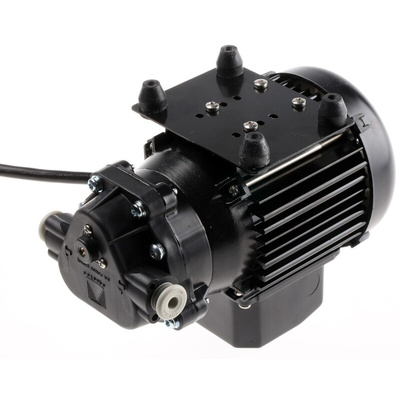

Xylem Flojet Positive Displacement Pump

The Xylem Flojet AD4/90 multi-chamber diaphragm positive displacement pump is designed for transfer, demand/delivery, filtration, high flow booster, carbonation, beverage dispense and continuous reverse osmosis applications. Its maximum flow rate is 3L/min. New multi-chamber technology with patented valve design overcomes vibration and hydraulic pulsation.

AD4/90 continues to running in closed valve conditions liquid being recirculated via an internal bypass valve. AD500 ceases to running in closed valve conditions as it is fitted with a pressure switch

Features and Benefits

The supply voltage rating is 230V
Input power is 55W
Maximum working pressure is 20bar
Maximum Fluid temperature is 77°C
Specific gravity is 30 maximum
Self-priming up to 2m head
Quiet and energy efficient
Alternative bypass pressures
Optional mounting orientation
Dry running without damage
Compatible with standard fittings
Corrosion and chemical resistant versions

Certifications

IP44 rated

Information about Cavitation

Datasheet
