78638518 M22-DP-S+M22-A, Eaton RMQ Titan M22 Series Black Momentary Push Button Head, 22mm Cutout, IP69K

Momentary and Latching 35mm Mushroom Head

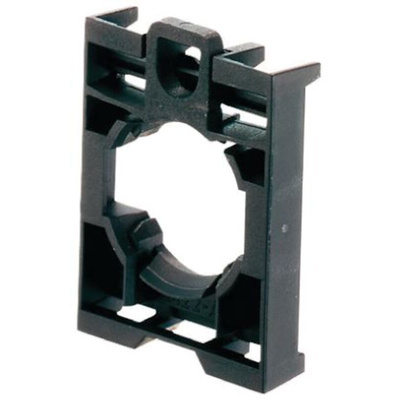

Complete with fixing adapter for contact blocks
M22-DR... converts to momentary if required

Standards

IEC/EN60947.

Approvals

UL, CSA.

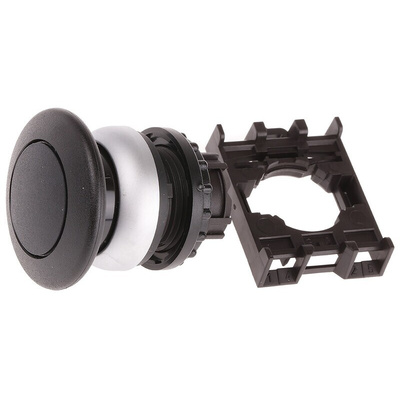

Eaton RMQ Titan Black Mushroom Push Button Head, Momentary, 22mm Cutout Diameter - RMQ-Titan / M22 Series - 78638518 M22-DP-S+M22-A

Do you need a reliable switch to operate your machinery? Choose this push button head from Eaton. Its momentary actuation characteristic means it only works when actively pressed, making it ideal for controlling equipment in need of operator supervision. With its IP69K rating, the actuator is totally protected against dust and long periods of water submersion, so it can perform in challenging industrial conditions. The button's mushroom shape has a large surface diameter of 29.7mm to comfortably fit into the palm of your hand.

• Hard-wearing plastic housing withstands intense use for a long service life
• Cutout diameter of 22mm for standard installation
• Supplied with a mounting adapter and compatible with panels and surfaces for versatility
• Wide operating temperature range of -25°C to +70°C for use in demanding conditions

What's the difference between momentary and maintained actuators?

Momentary actuators, such as an ignition switch, only activate when engaged, meaning the connected machine will shut down if you release the switch. Maintained actuators, such as a light switch, remain in position after being pressed to keep equipment running.

Note

Eaton formerly known as Moeller

Black Mushroom Head Pushbutton M22-DP-S
