78635880 M22-WLK3-G+M22-A, Eaton RMQ Titan Series 3 Position Selector Switch Head, 22mm Cutout, Green Handle

Eaton Illuminated Selector Switch Head - M22 Series

Eaton's M22 range of illuminated selector switch heads (sometimes be referred to as rotary selector switch or function selector switch) are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

Features and Benefits

• Mechanical lifespan of over 1,000,000 operations
• IP66 rating, offering protection against solids, such as dust, and liquids
• Operating temperature range of -25°C to +70°C
• Single selector head complete with fixing adapter for contact clocks and LEDs
• Titanium bezel
• Standard fixing aperture of 22.5 mm
• Available in a choice of colours

Uses and Applications

• Automation and control environments for mounting in control panels
• Dangerous equipment such as motors that require human intervention to operate.
• Public buildings to control lighting in restrooms, corridors etc.

Standards

IEC/EN60947.

Approvals

UL, CSA.

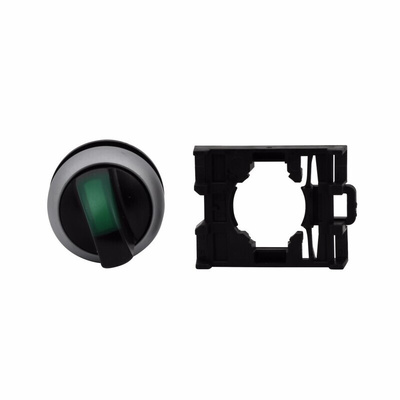

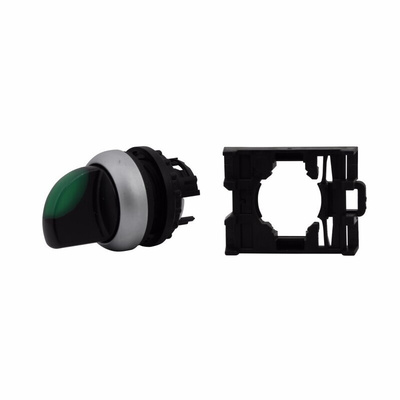

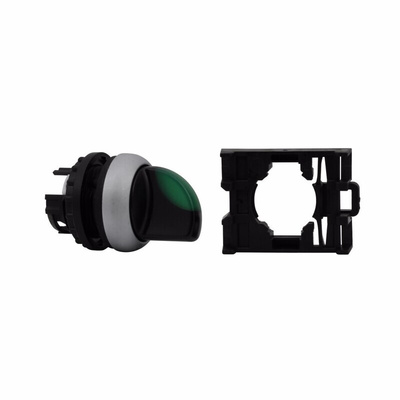

Eaton RMQ Titan Illuminated Selector Switch With Mounting Adaptor, Green, 22.5mm Cutout - RMQ-Titan / M22 Series - 78635880M22-WLK3-G+M22-A

Benefit from quick and simple installation with this selector switch from Eaton. It includes a mounting adaptor for added convenience, while its innovative design allows for flexible panel fitting. The robust switch is illuminated with an LED (light-emitting diode) that can provide over 100,000 continuous hours of bright light. A mechanical lifespan of over 1 million hours ensures consistent dependability over the unit's extended service life. Its heavy-duty construction carries an IP66 (ingress protection) rating for total protection against dust and high-pressure water jets. This switch is suitable for industrial and commercial applications.

• Suitable for use in a broad range of climates, with an operating temperature range of -25°C to +70°C
• Thermally stable mounting enclosure that won't become brittle or degrade at high temperatures
• Ergonomic thumb-grip to improve ease of use when turning the switch
• Superior resistance to mechanical shock, allowing it to withstand heavy-duty applications

Will this switch rust?

Both the selector switch and the mounting adapter are made from hardwearing plastic so there's no risk of them rusting. For this reason, the unit's a good choice for the food and beverage industry or other applications where frequent washdowns take place.

Note

Eaton formerly known as Moeller
