78635879 M22-WLK3-Y+M22-A, Eaton RMQ Titan Series 3 Position Selector Switch Head, 22mm Cutout, Black/Yellow Handle

Eaton Illuminated Selector Switch Head - M22 Series

Eaton's M22 range of illuminated selector switch heads (sometimes be referred to as rotary selector switch or function selector switch) are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

Features and Benefits

• Mechanical lifespan of over 1,000,000 operations
• IP66 rating, offering protection against solids, such as dust, and liquids
• Operating temperature range of -25°C to +70°C
• Single selector head complete with fixing adapter for contact clocks and LEDs
• Titanium bezel
• Standard fixing aperture of 22.5 mm
• Available in a choice of colours

Uses and Applications

• Automation and control environments for mounting in control panels
• Dangerous equipment such as motors that require human intervention to operate.
• Public buildings to control lighting in restrooms, corridors etc.

Standards

IEC/EN60947.

Approvals

UL, CSA.

Eaton RMQ Titan Yellow Selector Switch Actuator, Momentary, 3 Positions - RMQ-Titan / M22 Series - 78635879 M22-WLK3-Y+M22-A

This selector switch head from Eaton gives you close control of your moving equipment. It has 3 selectable positions to support machines with multiple operating modes, so you can adjust your processes as you need. The actuator pairs with a light block (for example, 760-4659) to illuminate it while active and keep the status of your appliances clearly displayed. With its momentary actuation style, the switch only works when pressed, making it ideal for controlling processes in need of constant supervision.

• Large throw angle of 40° between positions to reduce the risk of disruption from accidental switching
• IP66 rating indicates dust-tight and watertight protection against pressurised jets for use in demanding industrial settings
• Integrated thumb-grip makes the knob easy to turn with wet or gloved hands

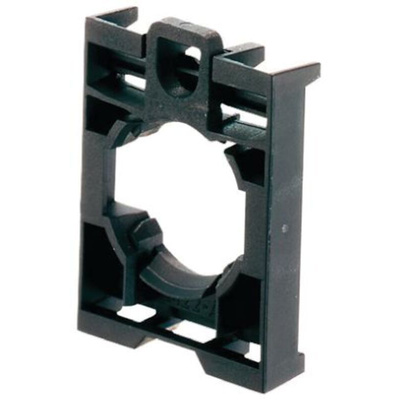

• Mounting adapter included for simple installation

How are the positions on this selector switch configured?

The actuator's OFF position is central, while the two ON positions are 40° to the left and right. The directional controls with its momentary action make the switch ideal for conveyor applications involving sensitive materials.

Note

Eaton formerly known as Moeller

Ill.sel.switch act.,3 pos.,yellow M22-WLK3-Y
