216402 M22-MS, Eaton Mounting Tool

Eaton M22 Series Push Button

Eaton's M22 range of push button heads are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push buttons including LED elements, selector switches, key switches, push-pulls, alternate action and turn-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes in automation and control environments. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business.

Features and Benefits

• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives this control switch an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button head is supplied as a single unit, enabling easy installation for worldwide applications
• Modular M22 series features adaptable functionalities
• IP67/IP69 rated
• For DIN rail mounting adapter see RS Stock No. 399-3961
• For fixing tool see RS Stock No. 446-5467

Approvals

UL, CSA.

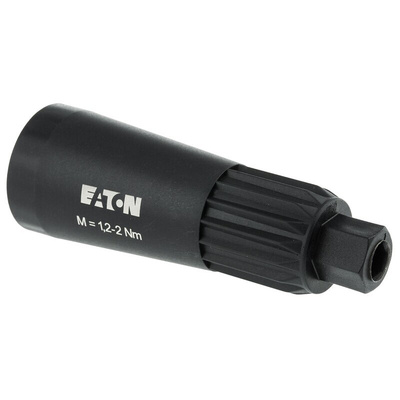

Eaton Mounting Tool for RMQ Titan Series, 22mm Diameter - 216402 M22-MS

Use this installation tool from Eaton to conveniently install pushbuttons and other pilot devices on your industrial panels. It's a mounting wrench that secures mounting rings on components so they don't fall off or loosen due to shock and vibration, effectively reducing maintenance downtime. The unit has an ergonomically designed handle that makes it comfortable to use for long periods. It can also be attached to an electric screwdriver for automatic control and greater ease of use. You'll commonly find components like this used in the electrical and automation industries.

Features & Benefits

• Compatible with pilot devices in the RMQ Titan series for greater ease of use
• Wide operating temperature range of -25°C to +70°C for use in harsh environments

How do I use this mounting tool?

This device is simple to use as it has several notches that fit the tabs on the mounting ring. Simply fit the tool onto the ring and turn to tighten the ring to the pilot device or push-button.

Is this tool protected against electrical hazards?

This mounting tool is made of a thermoplastic material that offers good insulation and protects you against electric shocks.

Note

Eaton formerly known as Moeller
