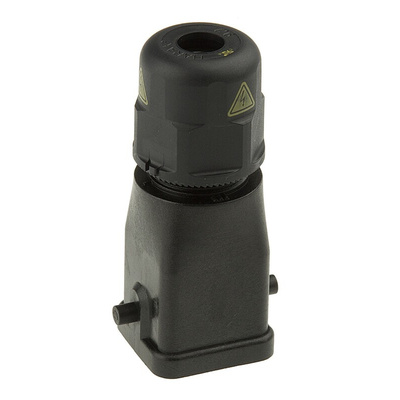

09200030445, HARTING Heavy Duty Power Connector Module, 10A, Female, Han A Series, 3 Contacts

Han® 3A HARAX Integrated Connector

Time-saving providing quick connection to equipment
Can be re-terminated up to 10 times
Safety locking mechanism
Male and female versions
Complete with housing

Can be connected to standard Han® A inserts (fitted within an appropriate housing)
No special tools needed
IP65 rating
Temperature rating -40°C to + 85°C

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Han A® 10A to 16A Screw Series

These Han A® inserts are available in 10A and 16A current ratings. They are intended for use typically with hoods and housing; RS stock Nos. 114-8024, 181-0662 and 181-0690 and the associated ranges. These hoods and housings are associated to a specific Harting 'Size' number.

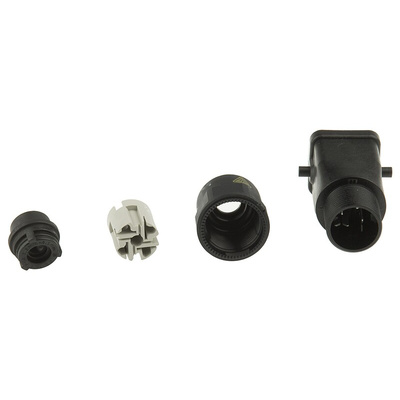

Han 3A mit HARAX Buchse - Han 3A with HARAX Female

Harax Series Features and Assembly Instructions

HARTING HAN 3A/4A Catalogue Extract

Dimensional Drawing Han 3 A with HARAX® female
