09150013013, HARTING Han D Coax Male Coaxial Contact for use with Heavy Duty Power Connector

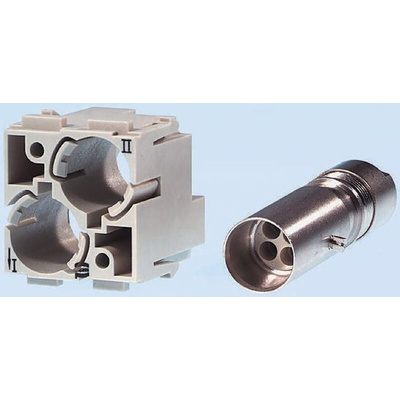

HAN® Quintax Module

2 Han-Quintax® contacts or 2 Han coax contacts per Quintax® module (contact stock no. 156-7267)
4 Han D contacts per Han-Quintax® contact
Modular construction (double module)
Shielding guide independent of housing potential
Connect to Han housing with no open shield
Ideal for transmitting highly sensitive signals (BUS signals)

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Dimensional Drawing Han Coax M-C / F-C
