216396 M22-T-DD, Eaton Push Button Cap for Use with M22(S)-DDL Series

Eaton M22 Series

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons including LED elements, selector switches, key switches, push-pulls, alternate action and twist-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business.

Eaton M22 Diaphragms for use with M22 Series

These push button enclosures from Eaton, also known as Diaphragms or pushbutton shrouds, is made for use with various single, double, indicator and pilot light pushbuttons from the RMQ-Titan M22 series. These reliable enclosures feature a single 22.5 mm hole for push button switches to be securely located and protected and is ideal for using in severe environment conditions within the food and industrial industries. It has a transparent design to allow the pushbutton it is protecting can be seen.

What are push button enclosures used for?

The Eaton Diaphragm protective cover can also be used withing the following applications to give extra protection when working withing harsh industrial environments..

Protective Cover for control circuit devices
Electric engineering
Automation
process control engineering

Note

Not suitable for use with label mounts since degree of protection is not guaranteed

Approvals

UL, CSA.

Standards

IEC/EN60947.

Eaton RMQ-Titan / M22-T-DD Diaphragm

RMQ-Titan (drilling dimensions 22.5 mm)
Transparent
For use with double pushbutton light from the M22 RMQ-Titan range

Note

Eaton formerly known as Moeller

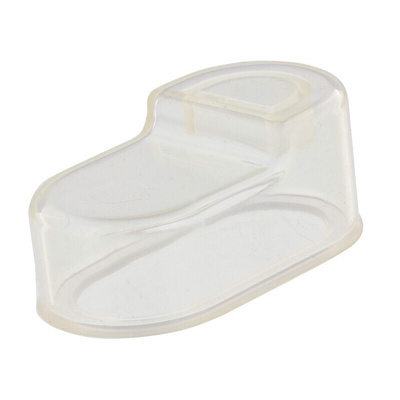

Diaphragm for double push-button M22-T-DD

M22-T-DD-Datasheet
