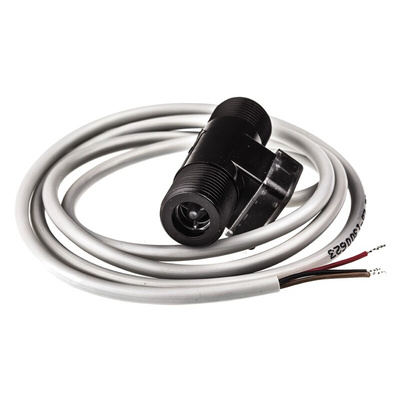

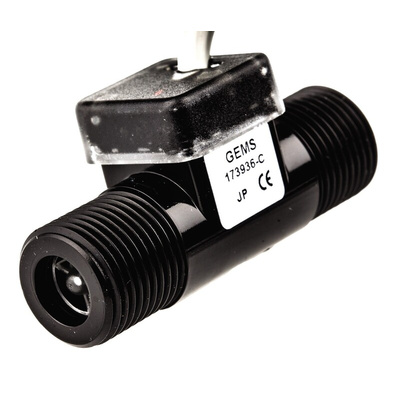

Gems Sensors Turbine Flow Sensor
The Gems Sensors FT-110 series hall effect turbine flow sensor sense a liquid flow rate of 0.5L/min to 5L/min. It is ideal for OEM applications involving low flow liquid monitoring. The low-cost coupled with 1/2% repeatability makes it an ideal candidate for replacing the dispensing timer system. Unlike the existing time system, turbine technology is not influenced by changes in system pressure caused by again filter. The sensor standard power and output specifications make it easy to retrofit to existing controllers.
Features and Benefits
Pipe diameter range is 3/8 in
Low-cost plus high accuracy ±3% of reading
It is available in Nylon 12 material
Required supply voltage is 5VDC to 24VDC
Connection type is 3/8 BSP
Maximum operating pressure is 200psi
Operating temperature rating ranges between -20°C and 100°C
Certifications
FDA approved
Техническая спецификация
FT-110 Series Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
