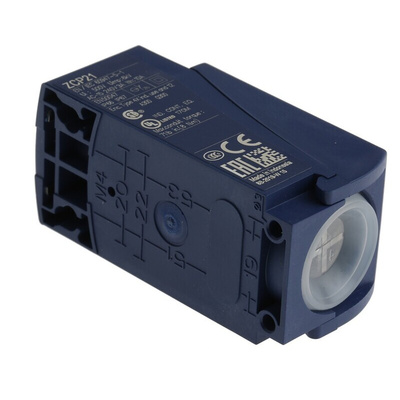

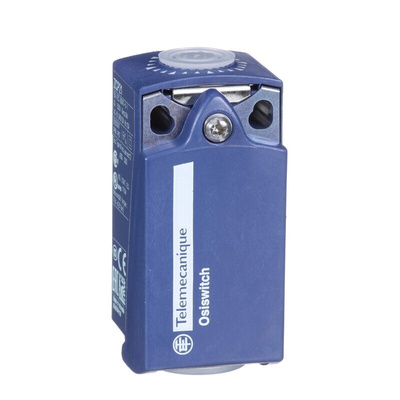

ZCP21, Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, DP, Plastic Housing, 240V ac Max, 1.5A Max

Telemecanique Sensors Limit Switch, Snap Action Type, 0.01m/s Minimum Actuation Speed - OsiSense XC Series - ZCP21

This snap action limit switch from Telemecanique Sensors is proof that small really is mighty. With compact dimensions of just 65 (L) x 31 (W) x 30mm (D), this miniature marvel can make itself at home in the narrowest of spaces. A maximum voltage rating of 250V AC means it doesn't compromise on power, either. The unit has highly conductive silver-plated contacts for an electrical connection you can rely on. Thanks to quick and easy screw-clamp terminals taking the hassle out of wiring, you'll be up and running in no time. Plus, a wide operating temperature range between -25°C and +70°C ensures this hardy component is suitable for use in demanding conditions.

Features & Benefits

• Impulse voltage rating of 6kV means it can brush off a power surge without breaking stride
• Zb insulation format keeps the NO/NC contacts isolated from each other for added safety
• Light 70g weight avoids adding unnecessary load to your system

Applications

• Materials handling
• Machining
• Food and beverage processing

How long will this product last?

With a hefty electrical durability of five million cycles, you can expect a long service life from this limit switch.
