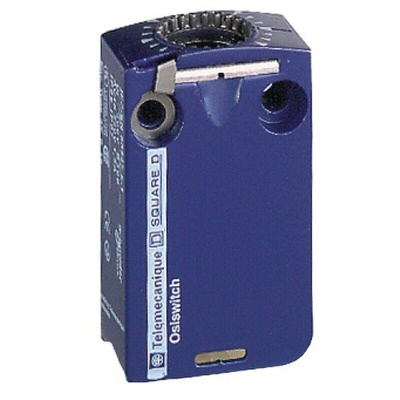

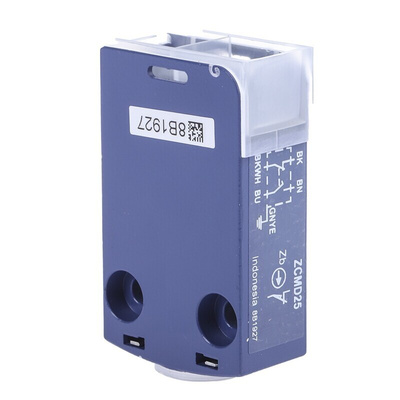

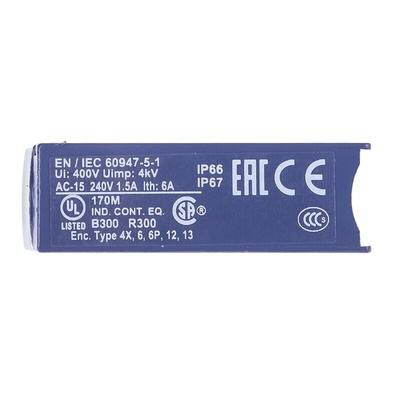

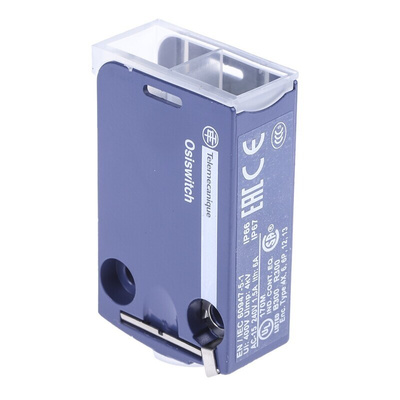

ZCMD25, Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, IP66, IP67, DP, Zinc Alloy Housing, 240V ac Max, 1.5A Max

OsiSwitch Limit Switch Bodies

The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.

Features & Benefits

Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection

Product Application Information

All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.

Telemecanique Sensors Limit Switch, Miniature Design, 6m/min Minimum Actuation Speed - OsiSense XC Series - ZCMD25

Get savvy about safe processes with this limit switch from Telemecanique Sensors. It's a handy device that cuts power to machinery in hazardous situations. As it's a slow-action actuator, its operating speed is the same as the travel speed of the contacts, so you get precise positioning. Zinc alloy housing means the unit's resistant to corrosion and impact for a long life in harsh settings. Highly conductive silver-plated contacts deliver smooth and reliable performance.

Features & Benefits

• Maximum current of 1.5A, so it's suitable for low-powered appliances
• IP67 rating means it's waterproof and shielded from dust
• Broad operating temperature range between -25°C and +70°C for use in harsh industrial conditions

Applications

• Industrial automation
• HVAC systems
• Medical equipment
• Food and beverage processing

What size is this limit switch?

This limit switch has dimensions of 30 (W) x 50 (L) x 16mm (D), so it's a compact solution that fits easily into busy setups.

What is meant by the unit's double pole and throw configuration?

In a double pole and throw configuration, there are two circuits that can be controlled by the switch. This gives you a backup channel in case of a fault in one of the circuits.
