XSAV11373, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 10 mm Detection, PNP Output, 12 → 48 V, Индуктивный датчик приближения

Telemecanique Inductive Sensors

Introducing Telemecaniques M30 Rotation Monitoring range of inductive proximity sensors which have been created and designed for use within applications with applications where metal detection is required. These Telemecanique cylindrical OsiSense XS inductive proximity sensors are designed for non-contact sensing of metal objects up to 60mm. They feature LED status display with a flush mountable brass body, each one has a pre-wired 2m cable and reverse polarity protection. They will predominantly be found in applications within the food and beverage industry.

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

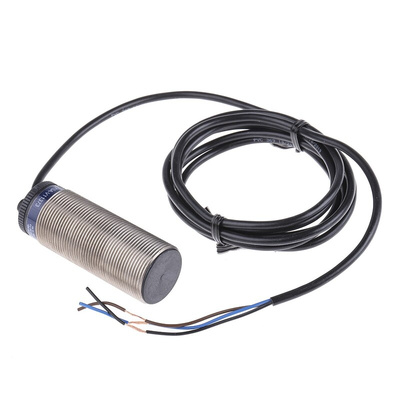

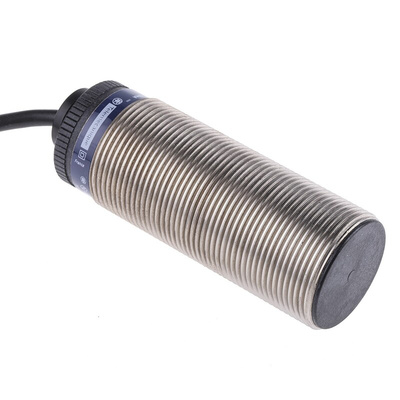

Telemecanique Inductive Sensor - XSAV11373

• Forms part of the OsiSense XS range of products
• Cylindrical M30 sensor design
• 81mm size
• 10mm nominal sensing distance
• Frontal detection face
• Sensor type - inductive proximity sensor

XSAV11373 Datasheet

Packaging Machines Application Software

Packaging Automation

XS range Catalogue

Instruction_Sheet-1

User_Guide-1

User_Guide-2
