RS PRO Oval Gear Flow Meter for Liquid, 0.01 L/min Min, 1 L/min Max

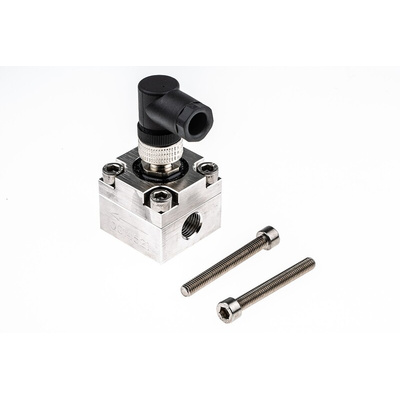

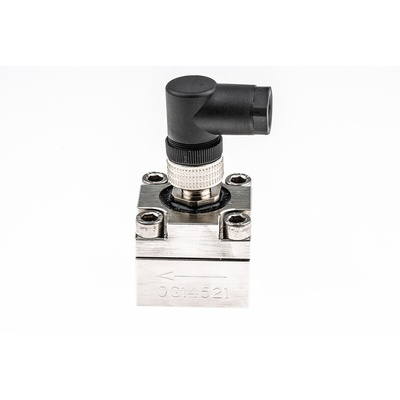

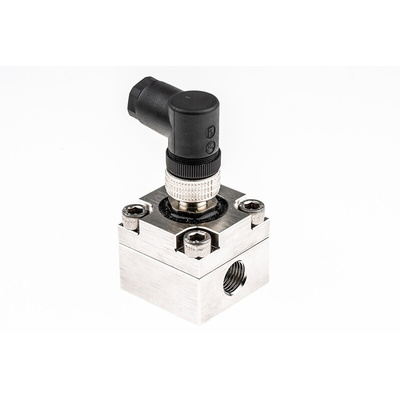

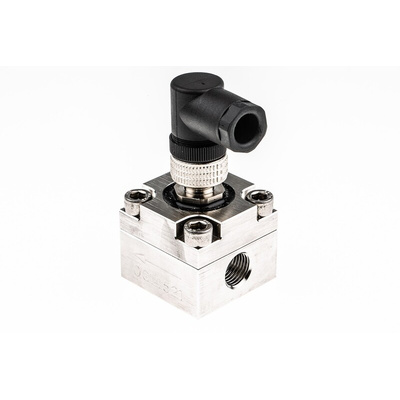

RS PRO Oval Gear Flow Meter, 0.01 L/min → 1 L/min

When measuring viscous fluids like oils and fuels, you need a flow meter with good resistance to chemicals combined with low loss of pressure. This RS PRO compact oval gear meter will do the job, providing you with long-lasting service thanks to its robust construction.

The meter contains two oval-shaped gears that move along with the fluid being measured. Their rotations are transmitted by magnets using a Hall-effect sensor, providing about 1,100 pulses per litre passing through. This product covers flow ranges from 0.01 L/min to 1.0 L/min on 30 cSt oil and 0.1 L/min to 1.0 L/min on liquids such as water. It fits on a quarter-inch British Standard Pipe (BSP) thread.

Corrosion-resistant, it's encased in stainless steel with a durable Viton O-ring. IP67-rated, it's watertight. This type of flow meter is used for measuring fuel usage in engines, as well as in hydraulics and the food industry.

Features and Benefits

• Oval gear flow meter
• Minimum flow rate (30 cSt oil) 0.01 L/min
• Minimum flow rate (water-like substances) of 0.1 L/min
• Maximum flow rate of 1 L/min
• Quarter-inch BSP connection
• Made of stainless steel
• Viton O-ring
• IP67 water-resistant
• Maximum pressure of 50 bar
• Maximum operating temperature of +80˚C
• Supply voltage of 5 to 24 V DC
• Terminated in M12 instrument socket
• Weight of 0.36 kg
• Accuracy (water-like substances) within 1%
• Accuracy (30 cSt oil) within 0.75%
