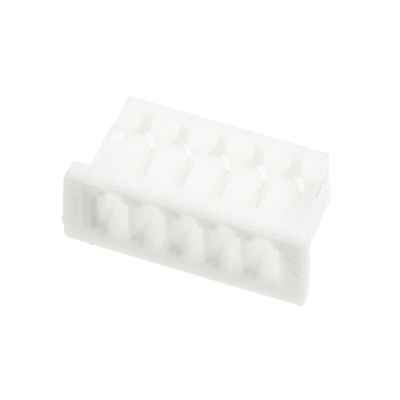

51021-0500, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

Molex PicoBlade Female Connector Housing, 5 Way, 1.25mm Pitch - 51021 Series - 51021-0500

Provide your wire-to-wire and wire to printed circuit board (PCB) connections with an extra-strong hold using this Molex female connector housing. It protects your electrical connections from shocks and vibrations thanks to its straight friction lock that prevents your wires from coming loose. The durable polybutylene terephthalate (PBT) thermoplastic material is impact-resistant, so it can withstand use in heavy-duty environments. The single-row design is highly versatile, making it suitable for use in a wide variety of PCB setups.

• Pitch of 1.25mm and compact dimensions of 8 (length) x 3.2mm (width) for use in tight spaces
• Maximum operating temperature of +85°C for use in hot environments
• Compatible with components in Molex's PicoBlade series for ease of installation

Applications

• Automotive modules
• Consumer technology
• Data servers
• Industrial equipment

How long will this housing last?

The housing is coated in a polyester resin to keep it in top working condition for longer. This coating provides extra resistance to abrasion, corrosion and build-ups of friction that could cause wear over time, ensuring long-lasting performance.

Approvals

UL (E29179); CSA (LR19980)
