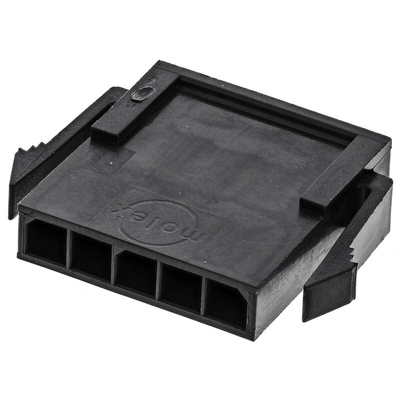

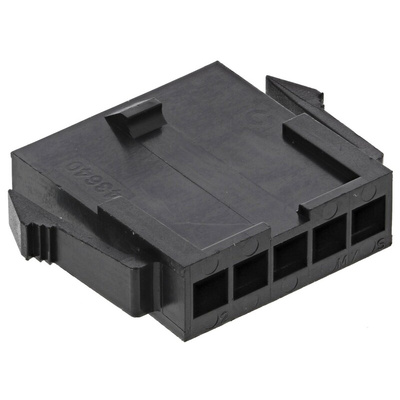

43640-0500, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43645 & 43640

The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.

Features and Benefits

• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating

Note

Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

Molex Connector Housing, 5A Maximum Current, 3mm Pitch - Micro-Fit 3.0 Series - 43640-0500

Need to get your wire-to-wire connections in order? Grab this male connector housing from Molex to organise complex wiring. You can run up to five circuits through the unit, simplifying your layout. It's polarised, so it prevents damage through non-compatible mating. Thanks to positive locking, the unit securely latches onto its female counterpart (170-7072) to help limit accidental disconnections and downtime. As this housing performs reliably in temperatures between -40°C and +105°C, you can depend on it to handle challenging conditions.

Features & Benefits

• Self-extinguishing material helps prevent the spread of flames in case of a fire
• PET construction resists impact and wear
• Built-in ears ensure a secure fit on your panel

Applications

• Consumer electronics
• Automotive industry
• Medical equipment

How many rows does this connector housing have?

It's a single-row component so it's easy to access the contacts.
