Molex Micro-Fit Connector Housings – Series 43645 & 43640
The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.
Features and Benefits
• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating
Note
Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

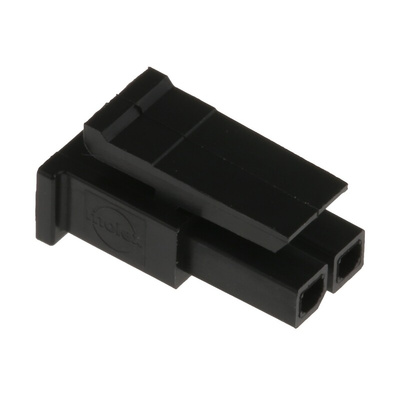

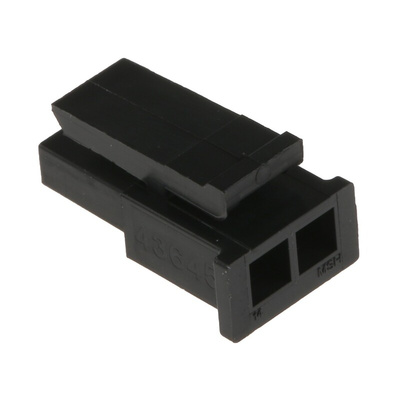

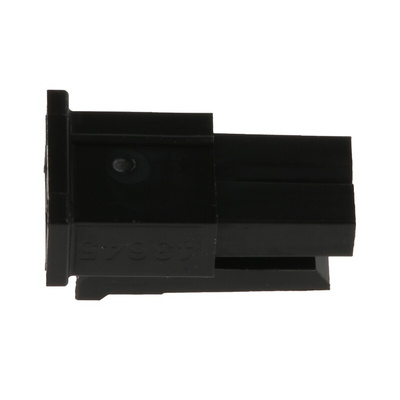

Molex Micro-Fit 3.0 Connector Housing, 2 Way, Single Row - 43645 Series - 43645-0200
Working with multiple PCBs (printed circuit boards)? Use this housing from Molex to protect and organise up to two PCB connections. It's compatible with Molex's Micro-Fit 3.0 connecting system for ease of use and is suitable for both wire-to-wire and wire-to-board connections for maximum flexibility. The design features positive locking, which will prevent accidental loosening and ensure a more secure connection. The housing's PBT (polybutylene terephthalate) material offers good impact strength and durability, so it's a reliable choice even when used in demanding industrial environments.
• Suitable for cable mounting for easy installation
• Maximum current per contact of 5A makes it suitable for use in most general-purpose applications
• Polarised for accurate mating to prevent damage due to incorrect insertion
• Wide operating temperature range of -40°C to +105°C for use in harsh environments
• Weight of only 0.272g to ensure your set-up doesn't become too bulky
Applications
• Automotive equipment
• Robotics
• Telecommunications systems
Is this receptacle stackable?
The receptacle isn't stackable. But thanks to its compact 8.28mm length, it saves you space when making multiple PCB connections.
Molex Micro-Fit 3.0 Series
