43645-0400, Molex, Micro-Fit 3.0 Receptacle Connector Housing, 3mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43645 & 43640

The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.

Features and Benefits

• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating

Note

Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

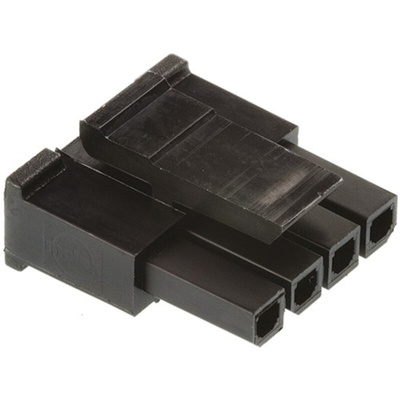

Molex Micro-Fit 3.0 Cable Receptacle Housing, 4 Way - 43645 Series - 43645-0400

When you need to protect circuitry and organise connections in your equipment, this cable receptacle housing from Molex is an effective solution. The receptacle features four contacts for connection to up to four PCBs (printed circuit boards), and it's polarised to ensure proper mating and prevent damage to the contacts. The housing's design offers lockable mating, which prevents it from coming loose and interrupting your connection. This receptacle is made from PBT (polybutylene terephthalate), so it can stand up to impacts and chemicals in harsh environments. As it weighs just 0.48g, it won't add extra bulk to your circuitry.

• Wide operating temperature range of -40°C to +105°C for use in a variety of demanding settings
• Compatible with other products in Molex's Micro-Fit 3.0 connection system for ease of use
• Designed for cable mounting for simple installation
• Space-saving length of just 12.85mm

Applications

• Telecommunications systems
• Consumer electronics
• Medical equipment

What types of connections does this receptacle support?

The receptacle is suitable for both wire-to-wire and wire-to-board connections, giving you flexibility when setting up your PCBs.

Molex Micro-Fit 3.0 Series
