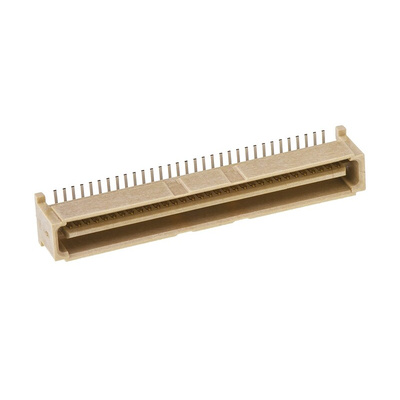

71436-0164, Molex PMC Mezzanine Series Straight Surface Mount PCB Header, 64 Contact(s), 1.0mm Pitch, 2 Row(s), Shrouded

4477151
Номер производителя: 71436-0164Производитель: Molex
Цена за шт.
1696.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Vertical Stacking SMT Headers & Sockets 64 Way

A range of 1.00mm Pitch Mezzanine IEEE 1386 Receptacles, Surface Mount (SMT) in Dual Row for Vertical Stacking applications.

Allows PCI and S-bus (IEEE 1386) mezzanine cards to connect to VMEbus and Multibus host boards
Suitable for LAN, WAN, telecommunication, PC and workstation applications
Shrouded leaf design (minimises damaging header contacts)
Low insertion force sockets
High-temperature LCP housing for use with reflow solder processes
Antiflux design
Mated heights: 8 → 15mm (see combination guide)

Approvals

UL recognised component

Molex PMC Mezzanine Straight PCB Header, 64 Way, 2 Rows - 71436 Series - 71436-0164

Make reliable connections with this Molex PCI (peripheral component interconnect) mezzanine PCB (printed circuit board) header. It lets you connect your VMEbus (Versa Module Europa or Versa Module Eurocard bus) and multibus host cards to your PCI and S-bus mezzanine cards. You'll find 64 pins arranged in two rows for vertical stacking applications, which saves space and establishes reliable communication systems and data transfers. Thanks to this header's corrosion-resistant and highly conductive gold-plated bronze contacts, you can be sure of its effectiveness and long service life.

• Shrouded leaf design and low insertion-force sockets prevent damage to the header contacts and the PCB
• Broad operating temperature range of -55°C to +85°C for use in demanding conditions
• Antiflux design prevents solder from flowing and spreading to unwanted areas

Applications

• LAN (local area network) and WAN (wide area network) applications
• Telecommunications
• Computerised applications

What's a mezzanine connector?

A mezzanine connector, or mezzanine PCB header like this one from Molex, is used to establish connections between different PCBs in a closed system, such as in one computer or between two different computers.

Approvals

UL 94 V-0

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfLine Drawing
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
64
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Фосфорная бронза
Номинал тока:
1A
Номинальное напряжение:
100.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Серийный номер:
71436
Серия:
PMC Mezzanine
Система соединителя:
Board to Board
Тип монтажа:
Поверхностное крепление
Шаг:
1.0мм
